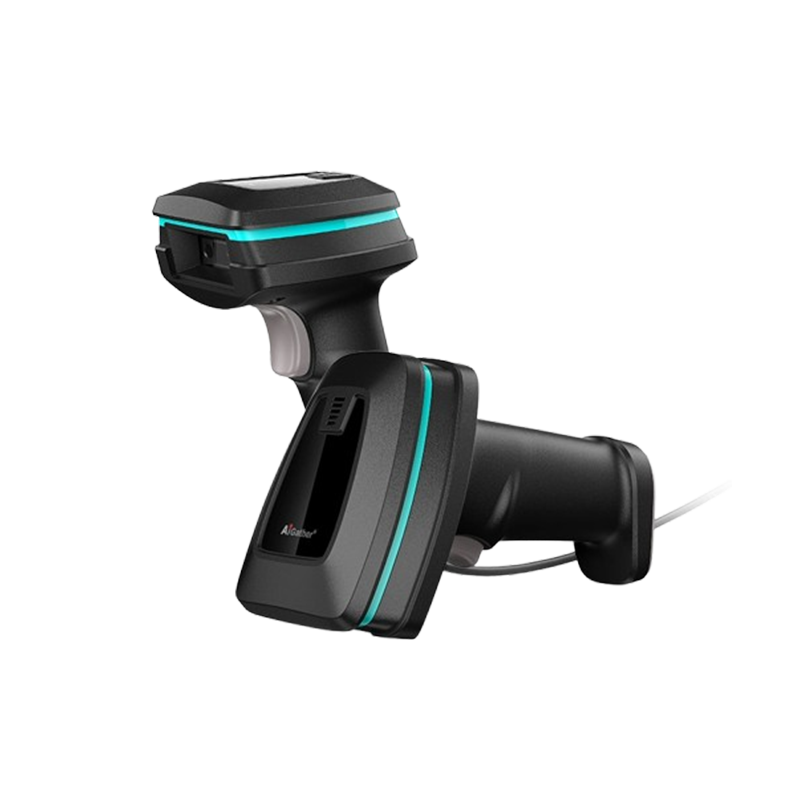

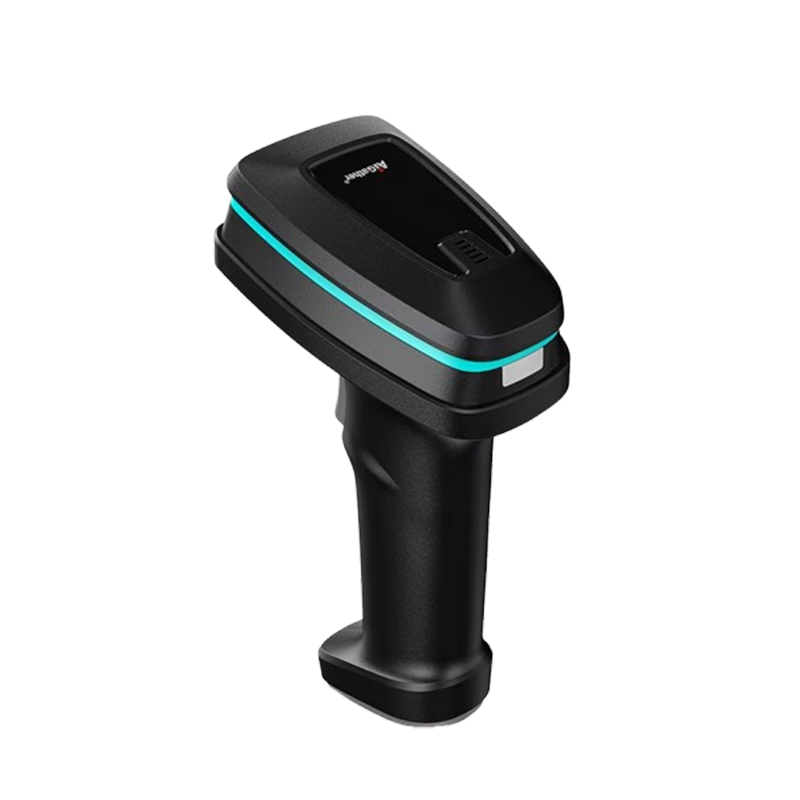

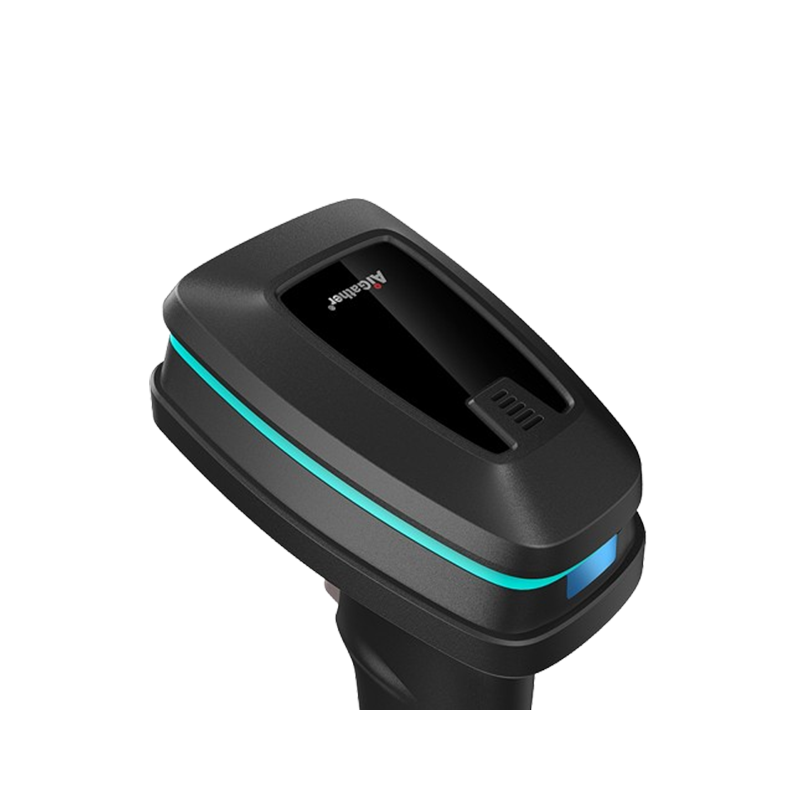

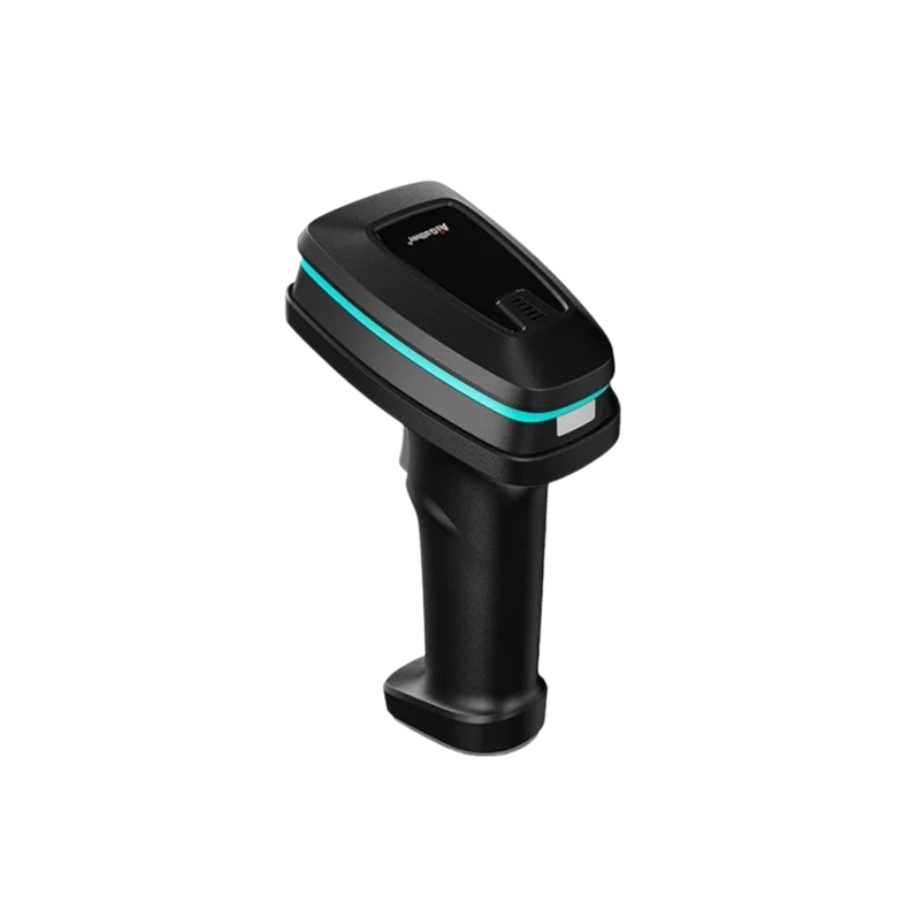

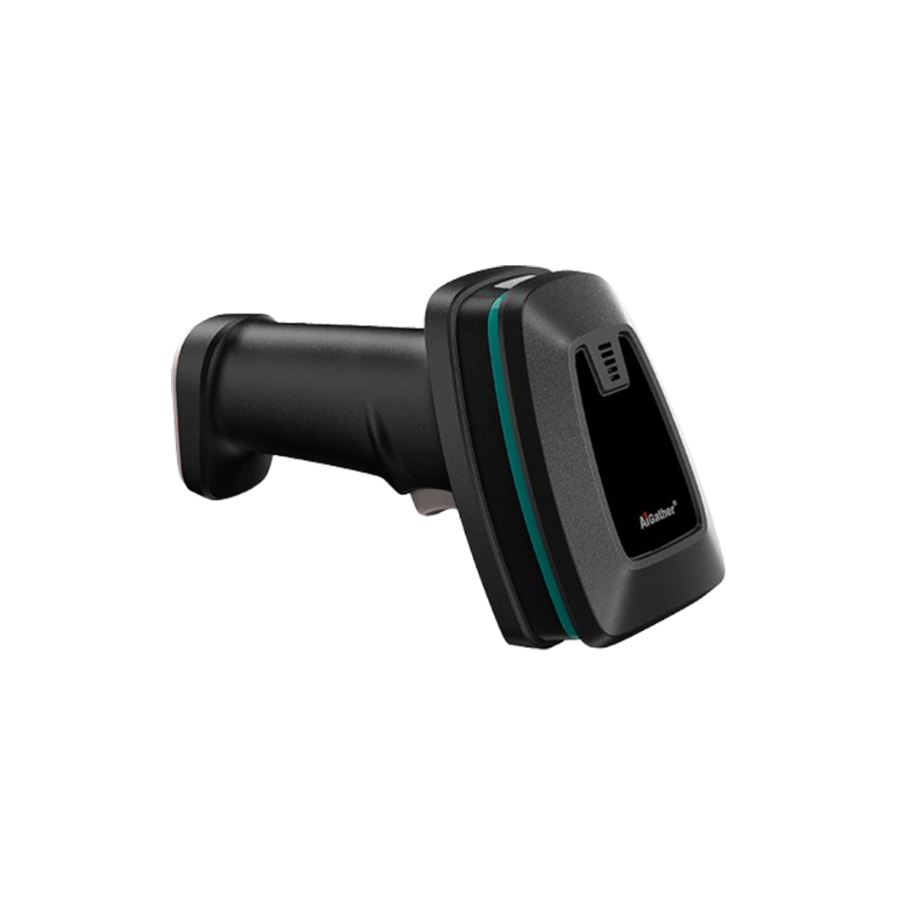

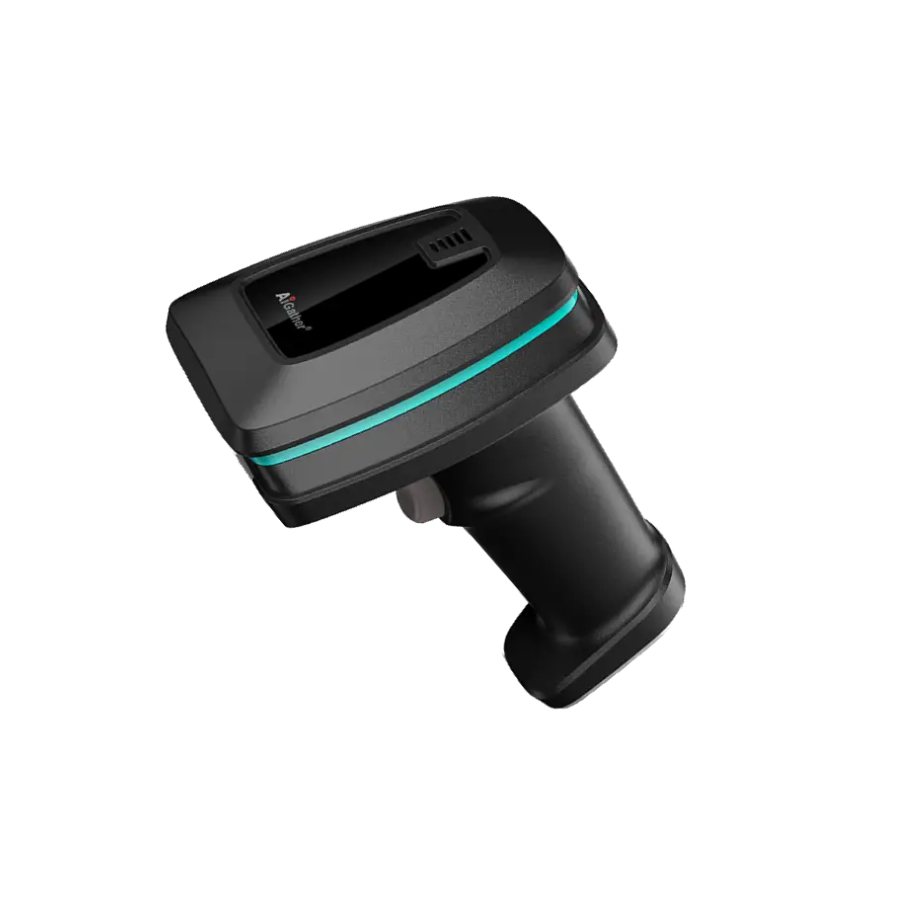

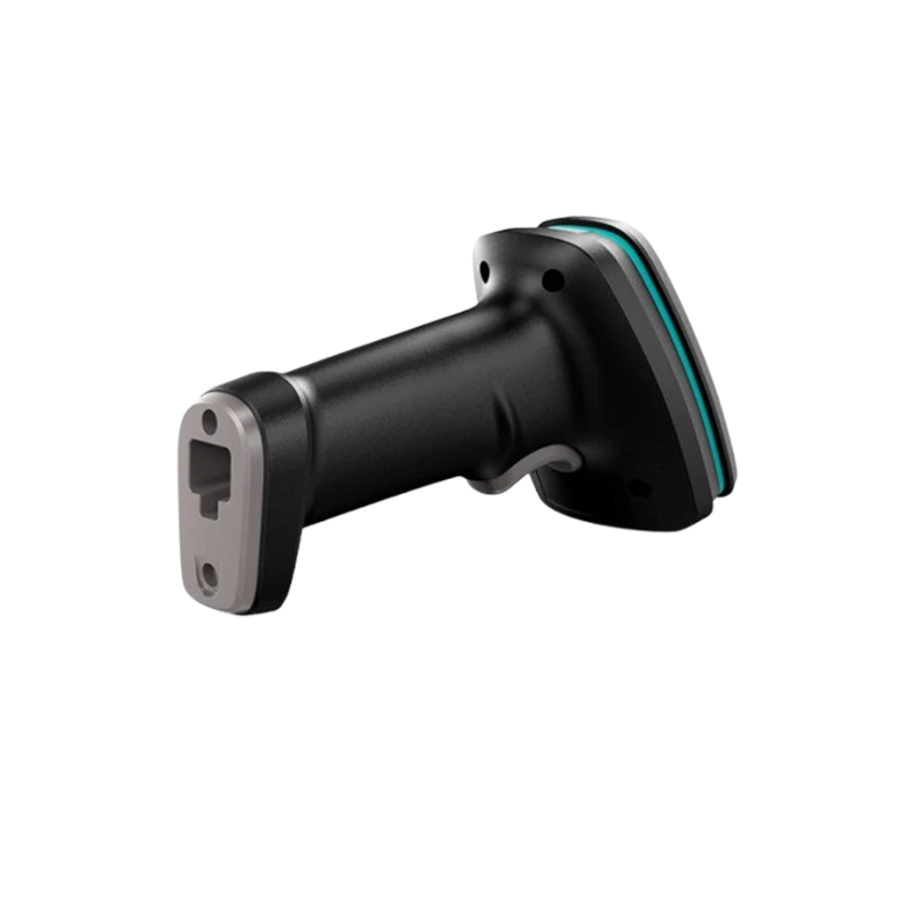

AiGATHER A-9520N 2D WIRED BARCODE SCANNER
- AVAILABILITY:
- SKU: 1178
- CATEGORY: POS ITEM,BARCODE SCANNER
AiGather A-9520N 2D Wired Barcode Scanner is a reliable handheld scanner designed for fast and accurate barcode reading in retail, POS, and inventory systems. It supports both 1D and 2D barcodes including QR codes, and features USB plug-and-play connectivity for easy setup. With its advanced decoding technology, durable drop-resistant design, and IP54 protection, it delivers smooth and consistent scanning performance for everyday business use.
1 YEAR WARRANTY
🔍 2D Imaging Barcode Scanner: Supports both 1D & 2D barcodes including QR Code, Data Matrix, PDF417, UPC, EAN, and more
⚡ High-Speed Scanning Performance: Up to 150 scans per second for fast and efficient data capture
🧠 1.2GHz Dual-Core Processor: Ensures quick decoding and smooth operation
🎯 High-Resolution Sensor: Equipped with 640×480 / 800×600 image sensor for accurate barcode reading
📱 Screen & Paper Scanning: Reads barcodes from mobile devices and printed labels, even low-quality or damaged codes
🔄 Omnidirectional Scanning: Supports wide-angle (360°) scanning for flexible use
🔌 USB Plug & Play: Easy setup with no drivers required, compatible with most systems
💡 LED & Buzzer Indicators: Provides audio and visual feedback for successful scans
🛡️ Durable Design: Drop resistance up to 1.2–1.5 meters for long-term use
🌡️ Wide Working Environment: Operates in 0°C to 50°C with strong light adaptability
🔋 USB Powered: Runs on 5V power supply with low energy consumption
🏪 Ideal for POS & Retail: Perfect for supermarkets, retail stores, warehouses, pharmacies, and billing systems
| Brand | AiGather |
| Model | A-9520N |
| Product Type | Handheld 2D Wired Barcode Scanner |
| Scan Technology | CMOS Image Sensor |
| Image Sensor | 800 × 600 pixels |
| CPU | 1.2 GHz Dual-Core |
| Light Source | White LED |
| Aiming Light | Green Dot |
| Resolution | ≥ 3 mil |
| Scan Speed | Up to ~60 FPS / ~150 scans/sec |
| Minimum Contrast | ≥ 20% |
| Supported Barcodes | 1D & 2D (QR Code, Data Matrix, PDF417, EAN, Code 128, UPC, etc.) |
| Scan Mode | Manual trigger |
| Reading Angle | Pitch: ±65° / Roll: 0–360° / Skew: ±60° |
| Field of View | D54° / H45° / V36° |
| Depth of Field | Up to ~230 mm (depends on barcode type) |
| Indicators | LED light + buzzer (adjustable) |
| Interface | USB HID, USB COM, RS-232, HID POS |
| Connectivity | Wired (USB Plug & Play) |
| Power Supply | 5V DC via USB |
| Operating Current | ~80 mA (working), ~130 mA (standby) |
| Protection Rating | IP54 (dust & splash resistant) |
| Drop Resistance | 1.2 – 1.5 meters |
| Operating Temperature | −10°C to 50°C |
| Storage Temperature | −20°C to 65°C |
| Humidity | 5% – 95% (non-condensing) |
| Weight | Approx. 180 – 200 g |
| Compatibility | Windows, macOS, Linux, POS systems |
| Usage | Retail, supermarkets, warehouses, logistics |
