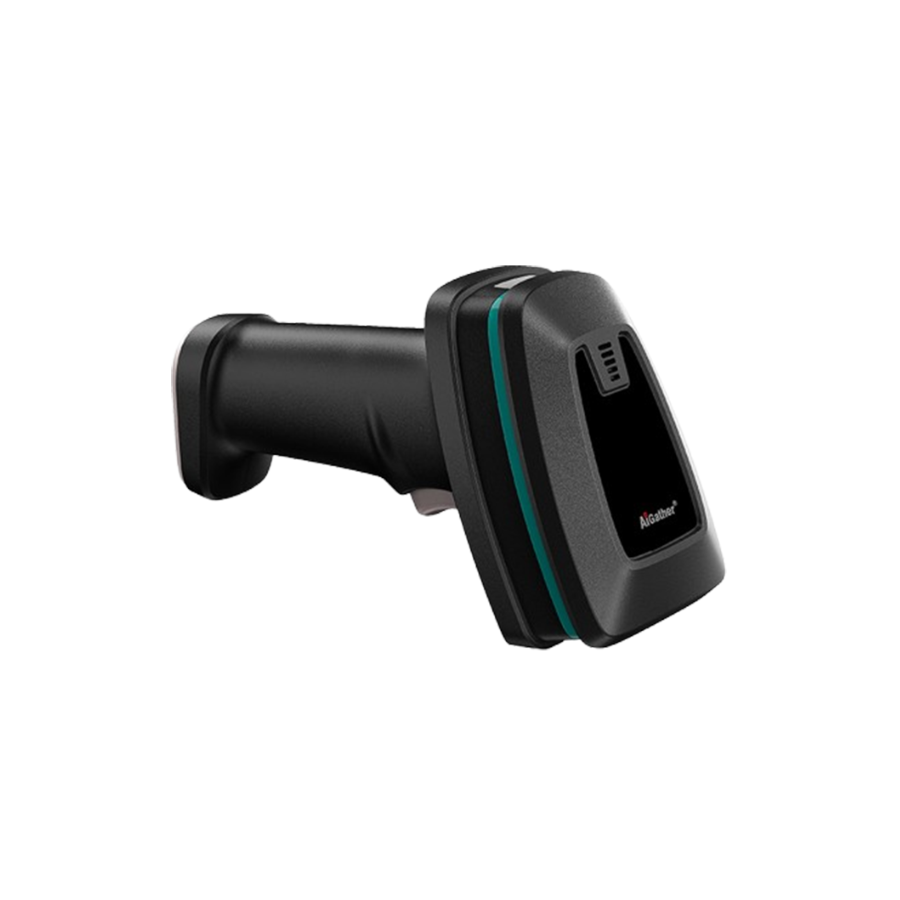

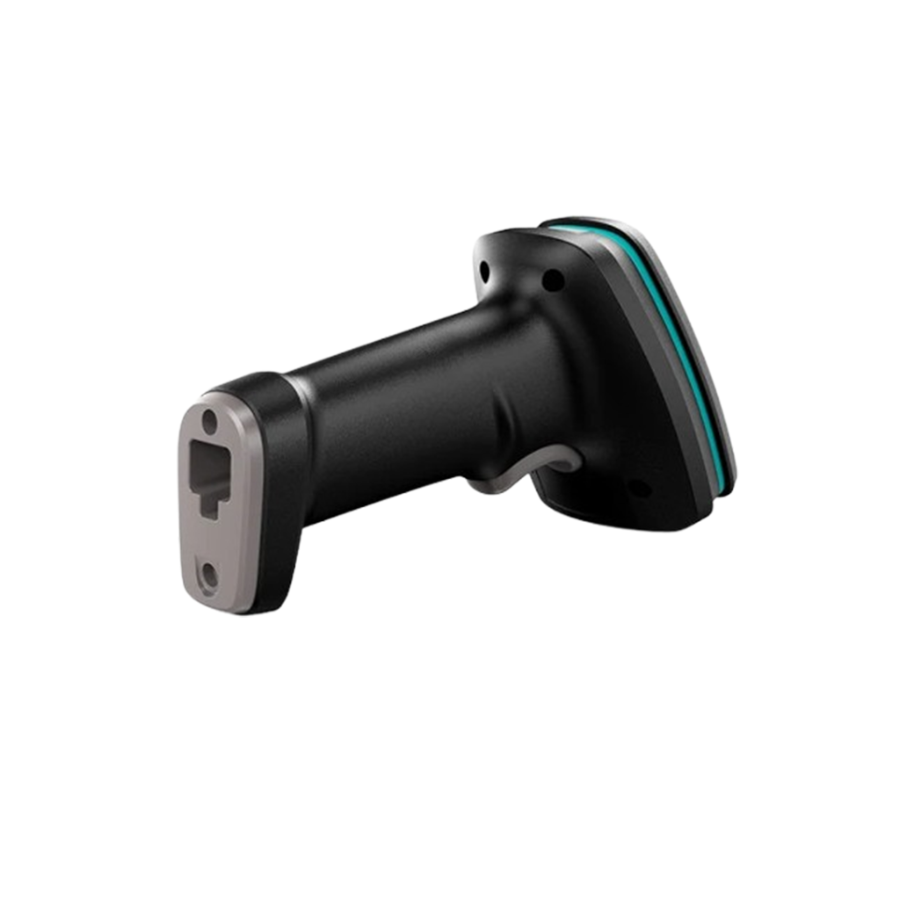

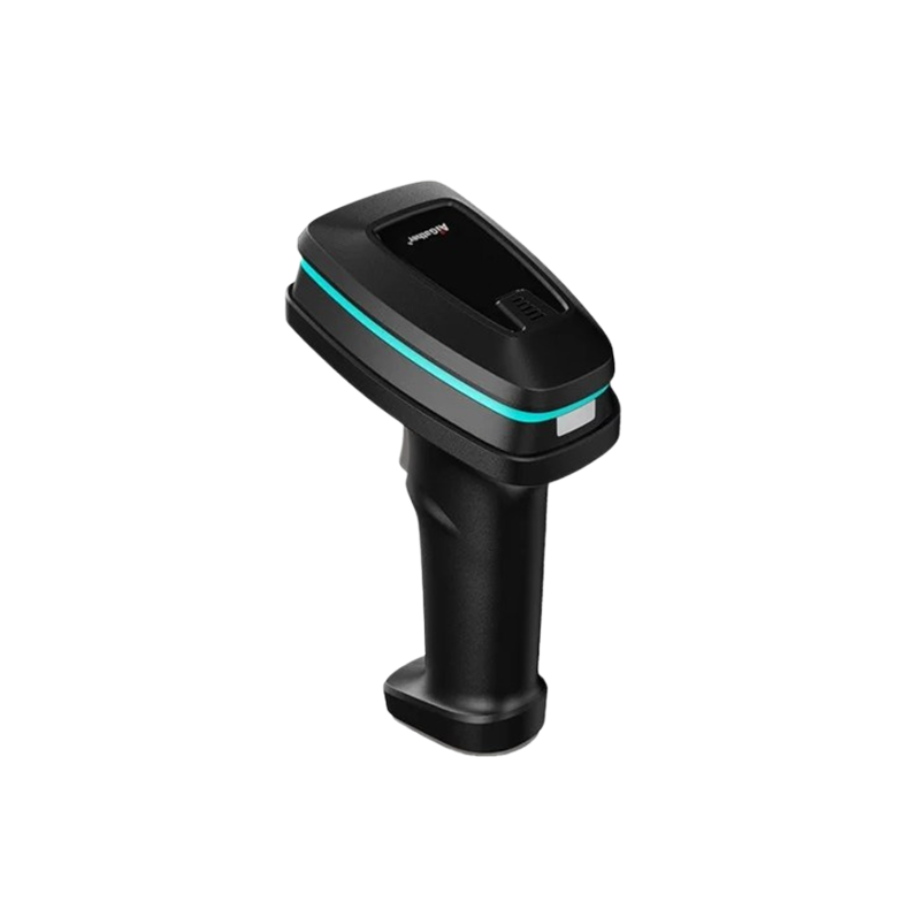

AiGATHER A-9520SR 2D WIRED BARCODE SCANNER
- AVAILABILITY:
- SKU: 1163
- CATEGORY: POS ITEM,BARCODE SCANNER
AiGather A-9520SR 2D Wired Barcode Scanner is a high-performance handheld scanner designed for fast and accurate barcode reading in retail, POS, and inventory environments. It supports both 1D and 2D barcodes, including QR codes, and uses an advanced decoding algorithm to read even damaged or low-quality codes. With USB plug-and-play connectivity, a high-resolution global shutter sensor, and durable drop-resistant design, it delivers reliable and efficient scanning for everyday business operations.
1 YEAR WARRANTY
🔍 Advanced 2D Imaging Scanner: Supports both 1D & 2D barcodes including QR Code, PDF417, Data Matrix, and more
⚡ High-Speed Performance: Powered by 1.2GHz dual-core CPU for fast and accurate barcode decoding
🎯 High-Resolution Sensor: Equipped with 1280×800 global shutter sensor for precise and reliable scanning
📱 Screen & Paper Scanning: Easily reads barcodes from mobile devices and printed labels, even damaged or low-quality codes
📏 Long Scanning Distance: Can read standard barcodes up to ~450mm distance depending on size and density
🔄 Omnidirectional Scanning: Supports wide-angle (360°) scanning for fast and flexible operation
💡 LED + Buzzer Indicators: Provides audio and visual feedback for successful scans
🔌 Multiple Interface Support: Includes USB HID, USB COM, RS-232, and POS compatibility
🛡️ Durable Design: Shock-resistant with 1.2m drop protection for daily use
🌡️ Wide Working Environment: Operates in -10°C to 50°C with strong resistance to light variations
🔋 Low Power Consumption: Runs on 5V USB power with efficient energy usage
🏪 Ideal for POS & Retail: Perfect for supermarkets, retail stores, pharmacies, warehouses, and billing systems
| Brand | AiGather |
| Model | A-9520SR |
| Product Type | Handheld 2D Wired Barcode Scanner |
| Scan Technology | CMOS Image Sensor (Global Shutter) |
| Image Sensor | 1280 × 800 pixels |
| CPU | 1.2 GHz Dual-core |
| Light Source | White LED |
| Aiming Light | Green Dot |
| Resolution | ≥ 3 mil |
| Motion Tolerance | Up to 2 m/s |
| Minimum Contrast | ≥ 20% |
| Field of View | Horizontal: 50° / Vertical: 38° |
| Reading Angle | Pitch: 0–360°, Roll: ±60°, Skew: ±60° |
| Supported Barcodes | 1D & 2D (QR Code, Data Matrix, PDF417, EAN, Code 128, GS1, etc.) |
| Scan Mode | Manual trigger scanning |
| Depth of Field | Up to ~450 mm (depends on barcode type) |
| Indicators | LED light + buzzer (adjustable) |
| Interface | USB HID, USB COM, RS-232, HID POS |
| Power Supply | 5V DC via USB |
| Operating Current | Working: ~80 mA / Standby: ~130 mA |
| Drop Resistance | 1.2 meters |
| ESD Protection | 8 kV air discharge |
| Operating Temperature | −10°C to 50°C |
| Storage Temperature | −20°C to 65°C |
| Humidity | 5% – 95% (non-condensing) |
| Dimensions | 172 × 67 × 87 mm |
| Compatibility | Windows, macOS, Linux, POS systems |
| Usage | Retail, supermarkets, warehouses, logistics |
