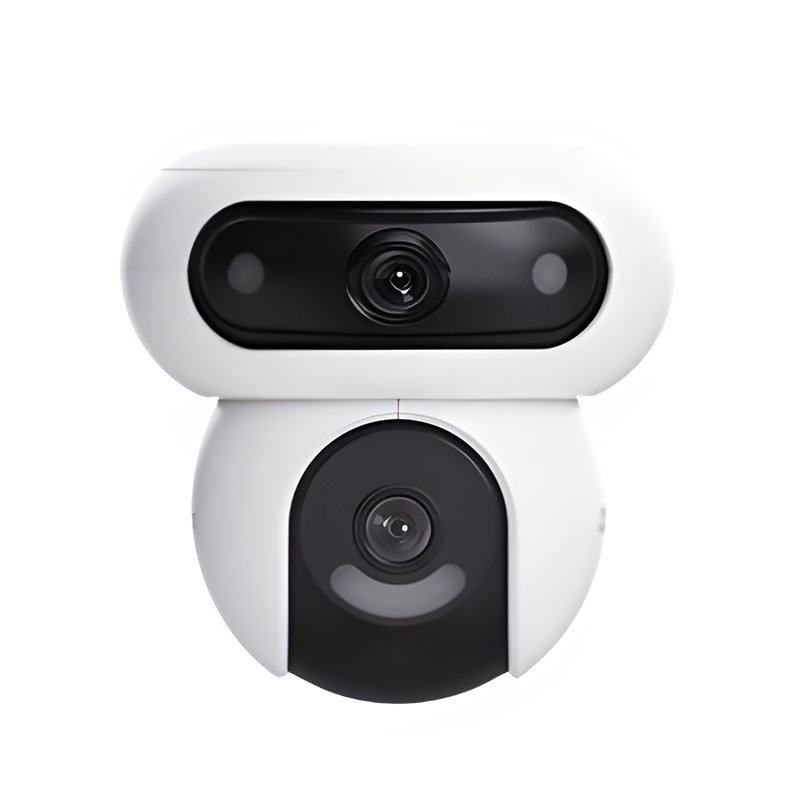

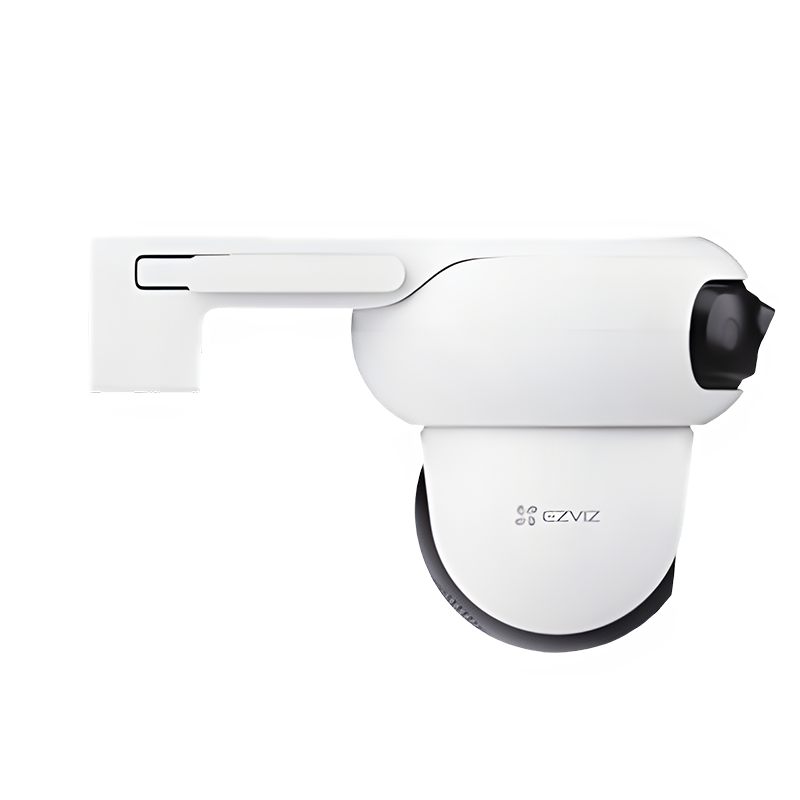

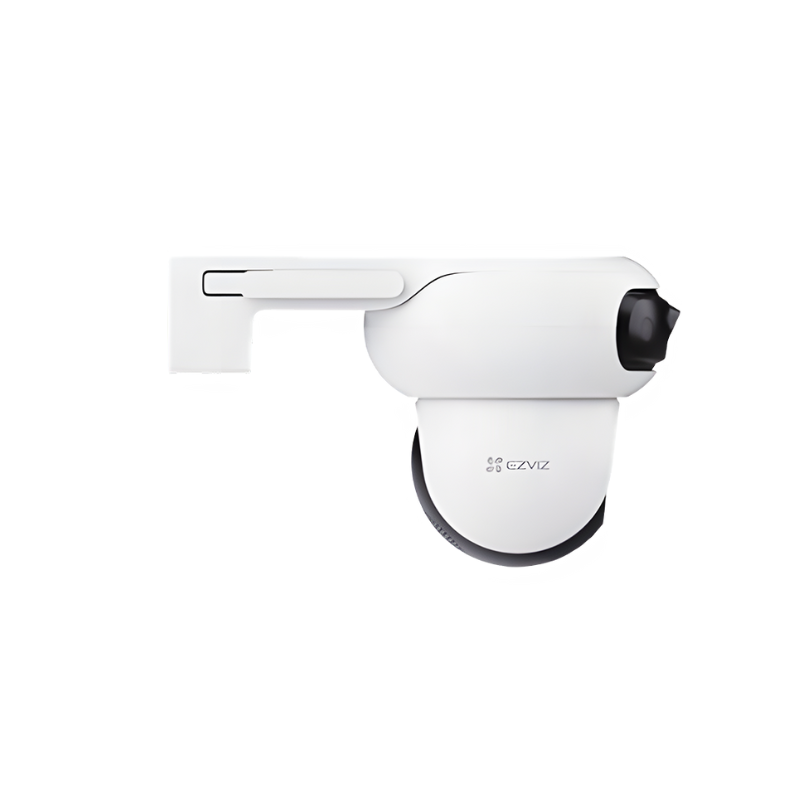

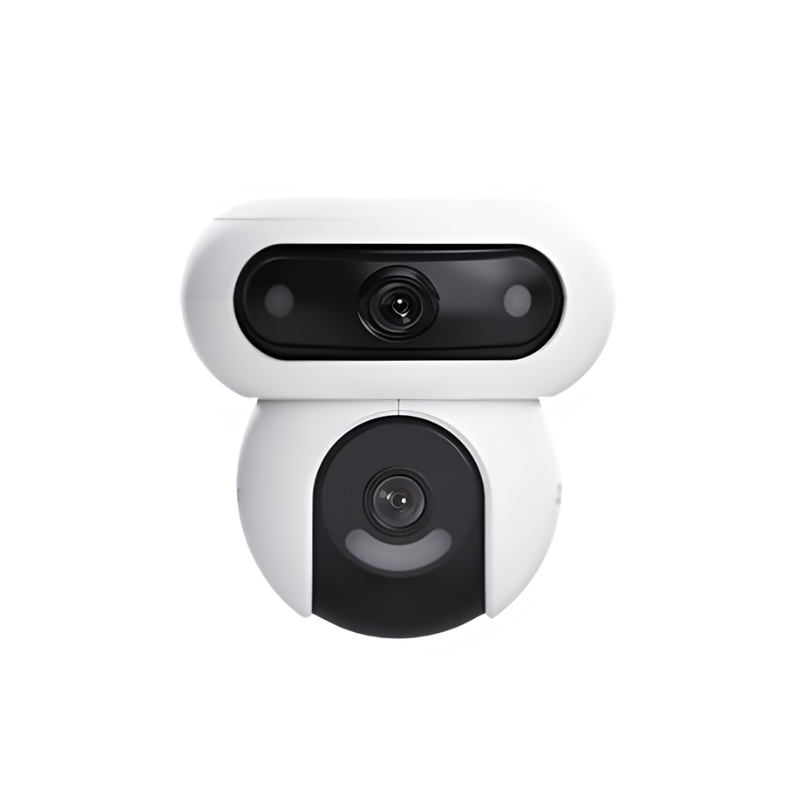

EZVIZ CS-H90 4MP + 4MP DUAL 2K | DUAL ROTATABLE LENS CAMERA

• Maximum Resolution: 2K+ (2880 × 1620 pixels)
• Frame Rate: Up to 15 frames per second; adjusts based on network conditions.
• Video Compression: H.265 / H.264 with adaptive bit rate.
• Audio Features: Supports two-way talk with self-adaptive audio bit rate.

Network:

• Wi-Fi Standards: IEEE802.11b/g/n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Security Protocols: WPA-PSK/WPA2-PSK
• Wired Network Interface: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Smart Features:

• AI-Powered Detection: Identifies human and vehicle shapes to reduce false alarms.
• Auto Tracking: Follows detected moving objects within its field of view.
• Customizable Alert Zones: Allows users to define specific areas for motion detection.
• Two-Way Communication: Enables real-time conversation through the camera.
• Preset Positions: Supports multiple preset viewing angles for quick access.

Storage Options:

• Local Storage: Supports microSD cards up to 512 GB (card not included).
• Cloud Storage: Compatible with EZVIZ CloudPlay services (subscription required).

General Specifications:

• Operating Conditions: Temperature range from -30°C to 50°C (-22°F to 122°F); humidity up to 95% non-condensing.
• Ingress Protection: IP65-rated weatherproof design, suitable for outdoor use.
• Power Supply: DC 12V / 1.5A with a maximum power consumption of 18W.
• Dimensions: 224 × 135 × 136 mm (8.82 × 5.31 × 5.35 inches)
• Weight: Net weight of 723 g (25.51 oz); with packaging, 1203 g (42.43 oz).

Package Contents:

• H90 Dual 2K+ Camera
• Power Adapter
• Drill Template
• Waterproof Kit
• Screw Kit
• Regulatory Information (×2)
• Quick Start Guide
