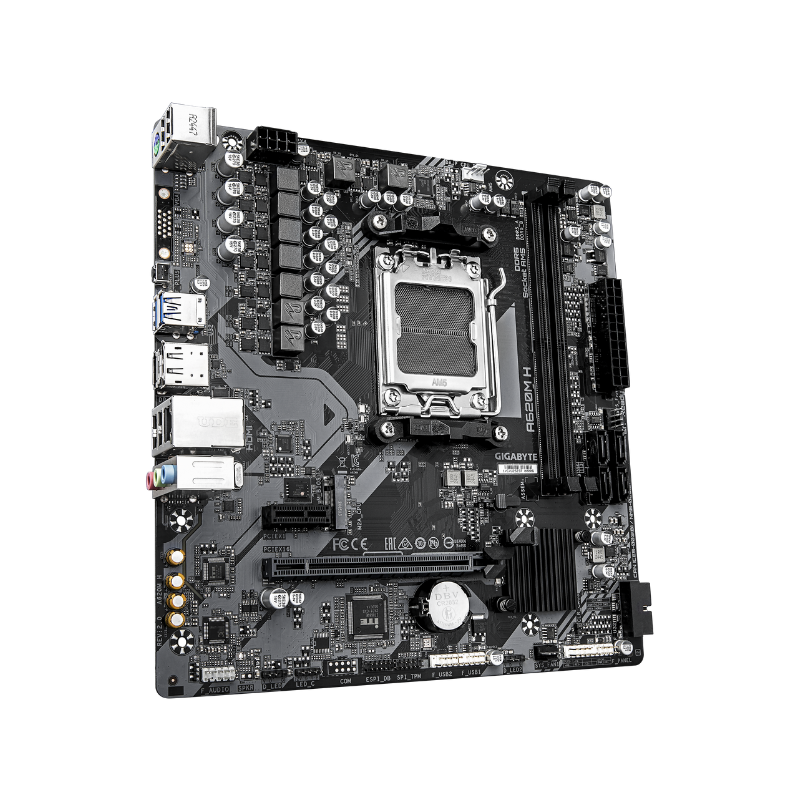

GIGABYTE AMD A620M H DDR5 MOTHER BOARD
- AVAILABILITY:
- SKU: 5605
- CATEGORY: MOTHERBOARDS,BRAND NEW
Rs. 38,790.00Rs. 36,000.00
A620M H is a compact, budget- to mid-range board ideal for a modern AMD-based PC build. It gives you DDR5 support, up-to-date connectivity (PCIe 4.0, M.2 NVMe, HDMI/DP, GbE LAN), and build-friendly features like BIOS-update simplicity and good power delivery - making it a solid choice for everyday use, gaming, or general-purpose desktop PCs without overspending.
3 YEAR WARRANTY
- Supports AMD Ryzen 7000 Series processors for reliable performance.
- Equipped with dual-channel DDR5 memory slots for higher speed and efficiency.
- Features PCIe 4.0 expansion support for modern GPUs and high-speed devices
- Includes NVMe M.2 slot for ultra-fast SSD storage.
- Built with high-quality components ensuring stable and durable power delivery.
- Offers essential connectivity options including USB 3.2, HDMI, and LAN.
- Designed in a Micro-ATX form factor, suitable for compact PC builds.
- Enhanced temperature and power control for long-lasting system stability.
| Model / Chipset | A620M H — AMD A620 chipset, Socket AM5 |
| Supported CPUs | AMD Ryzen™ 7000 / Ryzen 8000 / Ryzen 9000 series (AM5 socket) |
| Form Factor | Micro-ATX (≈ 23.0 cm × 22.5 cm) |
| Memory (RAM) | 2 × DDR5 DIMM slots, dual-channel |
| Max Memory Capacity | Up to 96 GB (2 × 48 GB); some listings note support up to 128 GB |
| Supported RAM Speeds | DDR5 at 4400 / 4800 / 5200 / 5600 / 6000 / 6200 / 6400 (OC) - and higher via overclocking (EXPO / XMP) |
| Memory Types | Non-ECC, unbuffered DIMMs (1Rx8 / 2Rx8 / 1Rx16) |
| Graphics / Display Outputs | 1 × HDMI (up to 4096×2160 @ 60 Hz, HDMI 2.1), 1 × DisplayPort (up to 3840×2160 @ 144 Hz, DisplayPort 1.4) |
| Expansion Slots | 1 × PCIe 4.0 ×16 slot (for GPU / expansion), 1 × PCIe 3.0 ×1 slot |
| Storage Interfaces | 1 × M.2 slot (PCIe 4.0 ×4/x2, 2280/2580) for NVMe SSD; 4 × SATA 6 Gbps ports for HDD/SSD |
| RAID Support | SATA & NVMe - RAID 0 / RAID 1 / RAID 10 supported |
| LAN / Network | Realtek Gigabit Ethernet (GbE) LAN |
| Audio | Realtek HD Audio, supports up to 7.1-channel audio |
| Back-panel & USB Connectivity | 2 × USB 3.2 Gen-1, 4 × USB 2.0 (plus internal headers for more); PS/2 port; display output ports; audio jacks; RJ-45 LAN. |
| Internal I/O / Headers | 24-pin ATX main + 8-pin 12V CPU power connector; CPU fan + system fan headers; headers for USB 3.2 / USB 2.0 / audio / RGB / addressable LED; Clear-CMOS jumper & TPM header (optional) |
| BIOS / Firmware | UEFI AMI BIOS (256 Mbit Flash), supports Q-Flash / Q-Flash Plus (BIOS update without CPU / RAM / GPU) |
