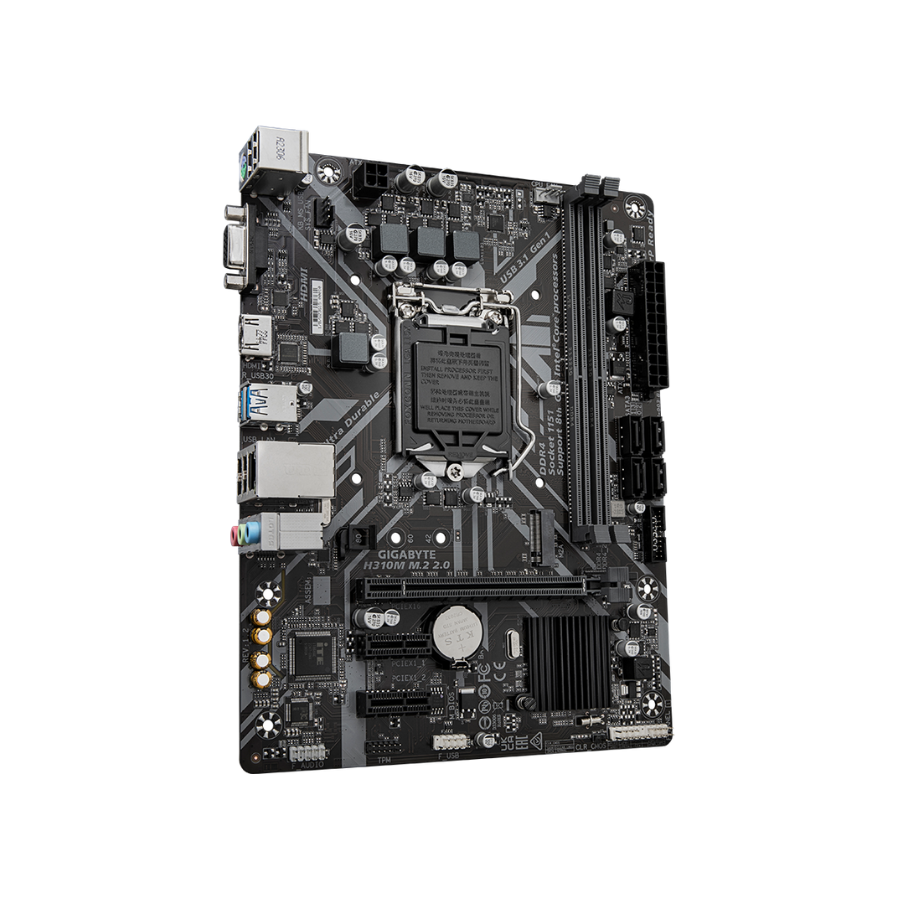

GIGABYTE H310M M.2 2.0 MOTHER BOARD
- AVAILABILITY:
- SKU: 2418
- CATEGORY: PC ACCESSORIES,MOTHERBOARDS
The GIGABYTE H310M M.2 2.0 Motherboard is a micro-ATX Intel platform board designed for mainstream desktop PCs, offering support for 8th and 9th-generation Intel Core, Pentium, and Celeron processors on the LGA1151 socket. It features dual-channel DDR4 memory support, an M.2 slot for fast PCIe/SATA SSD storage, HDMI and D-Sub video outputs for integrated graphics, and Gigabit LAN with bandwidth management — making it a solid foundation for basic gaming, home, or office PC builds.
3 YEAR WARRANTY
🖥️ Form Factor: Micro-ATX — compact size fits budget & space-saving builds.
🧠 Chipset: Intel H310 Express — basic platform for everyday computing.
🧩 CPU Support: 8th & 9th Gen Intel® Core™, Pentium® & Celeron® (LGA1151) — versatile support for a range of Intel processors.
💻 Memory: 2× DDR4 DIMM slots (dual-channel), Up to 32 GB capacity; supports DDR4-2666/2400/2133 MHz.
💾 Storage: 1× M.2 (Socket 3) slot support for PCIe Gen2 x2 & SATA SSDs (faster than SATA, though not full NVMe x4 speed), 4× SATA 6 Gb/s ports for HDDs/SSDs.
🖼️ Graphics Outputs: HDMI 1.4 — up to 4K @ 30 Hz, D-Sub (VGA) — up to 1920×1200 @ 60 Hz.
🌐 Networking: Realtek® Gigabit LAN with Gigabyte-exclusive bandwidth management for smoother traffic.
🔊 Audio: 8-Channel HD Audio with quality audio capacitors for immersive sound.
🔌 Expansion Slots: 1× PCIe 3.0 x16 slot for discrete GPUs, 1× PCIe 3.0 x16 slot for discrete GPUs.
🖱️ USB Connectivity: USB 3.1 Gen1 ports (≈5 Gbps) and USB 2.0/1.1 support for peripherals.
🛠️ Smart Features: Smart Fan 5 support with hybrid fan headers and temperature sensors, Anti-sulfur resistor design for durability.
💡 GIGABYTE APP Center: Central hub for Gigabyte utilities & settings.
🏡 Use Case: Great for everyday PCs, office rigs, basic gaming, home media, or budget builds needing M.2 storage support.
📦 Motherboard Only: PSU, CPU coolers, RAM, and storage devices not included.
| Brand / Model | GIGABYTE H310M M.2 2.0 Motherboard |
| Chipset | Intel® H310 Express Chipset |
| CPU Socket | LGA1151 (supports Intel 8th & 9th Gen Core / Pentium / Celeron CPUs) |
| Form Factor | Micro-ATX (≈ 22.6 × 17.4 cm) |
| Memory | 2 × DDR4 DIMM slots, up to 32 GB, Dual-channel, DDR4-2666/2400/2133 MHz |
| M.2 Slot | 1 × M.2 (Socket 3, M-key, supports PCIe Gen2 ×2 & SATA SSDs) |
| SATA | 4 × SATA 6 Gb/s ports |
| Expansion Slots | 1 × PCIe 3.0 ×16 slot 2 × PCIe 2.0 ×1 slots |
| USB (Back / Internal) | 4 × USB 3.1 Gen1 (2 rear, 2 internal) 6 × USB 2.0/1.1 (4 rear, 2 internal) |
| LAN | Realtek 1 GbE LAN with Gigabyte 8118 Gaming LAN features |
| Audio | Realtek HD Audio (8-Channel) |
| Video Outputs | 1 × HDMI 1.4 (up to 4096×2160 @ 30 Hz) 1 × D-Sub (VGA) (up to 1920×1200 @ 60 Hz) |
| Back Panel I/O | PS/2 combo HDMI D-Sub 2 × USB 3.1 Gen1 4 × USB 2.0/1.1 RJ-45 LAN Audio jacks |
| Internal Connectors | 24-pin ATX, 4-pin CPU 12V, SATA, fan headers, USB headers, front panel audio & USB headers, TPM header, Clear CMOS |
| BIOS | UEFI AMI BIOS (~128 Mbit) |
| Unique Features | Smart Fan 5 support, Anti-Sulfur resistor design, GIGABYTE App Center utilities |
| OS Support | Windows 10 64-bit (typical) |
| Ideal Use | Budget/mainstream PC builds, basic gaming, office/home systems |
