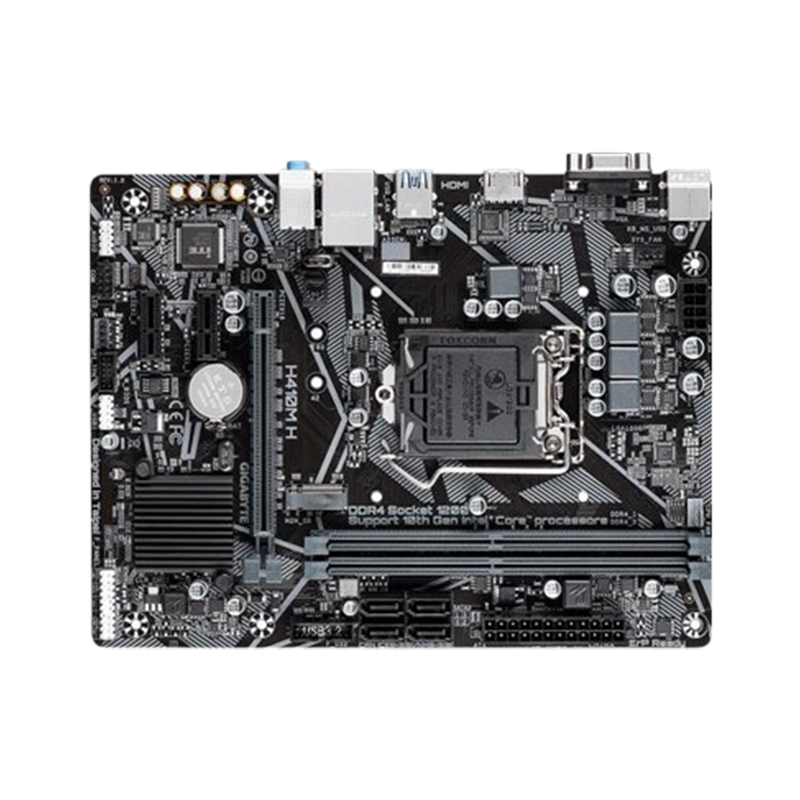

GIGABYTE H410M MOTHERBOARD
- AVAILABILITY:
- SKU: 9018
- CATEGORY: PC ACCESSORIES,MOTHERBOARDS
The GIGABYTE H410M Motherboard is a compact Micro-ATX board built on the Intel H410 chipset and designed for 10th-generation Intel Core, Pentium, and Celeron processors using the LGA1200 socket. It supports dual-channel DDR4 memory, includes modern features like M.2 SSD support, Gigabit LAN, and multiple USB ports, and offers both HDMI and analog video outputs for integrated graphics — making it a solid choice for mainstream desktop builds, home offices, or everyday computing needs.
3 YEAR WARRANTY
🖥️ Intel H410 Chipset — entry-level platform for 10th-Gen Intel processors.
🧠 CPU Support: Compatible with Intel 10th-Gen Core™ i9, i7, i5, i3, Pentium®, and Celeron® processors (LGA1200 socket).
🔢 Form Factor: Micro-ATX — compact size for small and standard builds.
🧠 Memory: 2 × DDR4 DIMM slots (dual-channel), Supports up to 64 GB system memory.
⚡ Storage Interfaces: 1 × M.2 slot (Socket 3) supporting PCIe and SATA SSDs, 4 × SATA 6 Gb/s connectors for HDDs/SSDs.
🖼️ Graphics Outputs (with integrated Intel graphics): HDMI for up to 4K output, D-Sub (VGA) for legacy monitors.
🔌 Expansion Slots: 1 × PCIe x16 for discrete GPU, 2 × PCIe x1 for add-on cards.
🌐 Networking: Gigabit Ethernet (Realtek) with bandwidth control for stable wired connection.
🔊 Audio: High-Definition audio with quality capacitors for clear sound.
🔌 USB Ports: Multiple USB 3.2 Gen1 & USB 2.0 ports on back and internal headers for peripherals.
💻 System Cooling: Smart Fan 5 fan headers and temperature sensors for optimized cooling control.
🛠️ Durability Features: Anti-sulfur resistor design and quality components for longer board life.
🖥️ Wide Compatibility: Works with Windows and supports the latest BIOS/firmware utilities.
📦 Ideal For: Everyday PCs, home/office builds, media centers, and budget gaming systems.
| Brand / Model | GIGABYTE H410M Motherboard |
| Chipset | Intel® H410 Express Chipset (LGA1200 platform) |
| CPU Support | 10th Gen Intel Core i9 / i7 / i5 / i3, Pentium, Celeron (LGA1200) |
| Form Factor | Micro-ATX (≈ 22.6 × 17.4 cm) |
| Memory | 2 × DDR4 DIMM slots, up to 64 GB, Dual-channel |
| Memory Speeds | DDR4-2933/2666/2400/2133 MHz (varies by CPU) |
| Expansion Slots | 1 × PCIe 3.0 ×16, 2 × PCIe 3.0 ×1 |
| M.2 Connector | 1 × M.2 Socket 3 (2242/2260/2280), PCIe ×2 & SATA support |
| SATA | 4 × SATA 6 Gb/s connectors |
| USB Ports | USB 3.2 Gen1: 4 (2 rear + 2 internal) USB 2.0/1.1: 6 (4 rear + 2 internal) |
| LAN | Realtek GbE LAN (1 Gbps / 100 Mbps) |
| Audio | Realtek audio codec, High Definition Audio (up to 7.1-channel) |
| Video Outputs | 1 × D-Sub (VGA), 1 × HDMI 1.4 (up to 4096×2160 @30 Hz) |
| Internal Headers | 24-pin ATX power, 8-pin CPU 12 V, fan headers, USB headers, front audio, TPM header, Clear CMOS jumper |
| Back Panel I/O | PS/2 combo, D-Sub, HDMI, 2 × USB 3.2 Gen1, 4 × USB 2.0, RJ-45 LAN, 3 × audio jacks |
| BIOS | UEFI AMI BIOS (128 Mbit flash) |
| Shared Memory | Max 512 MB for integrated graphics |
| Features | Smart Fan 5 support, high-quality audio capacitors, anti-sulfur design, GIGABYTE utilities |
