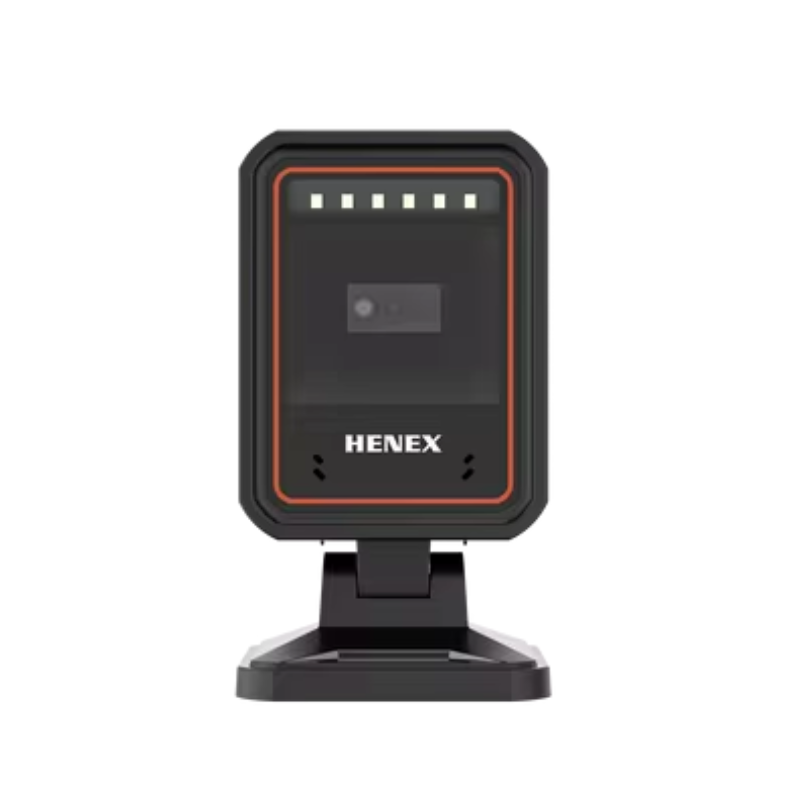

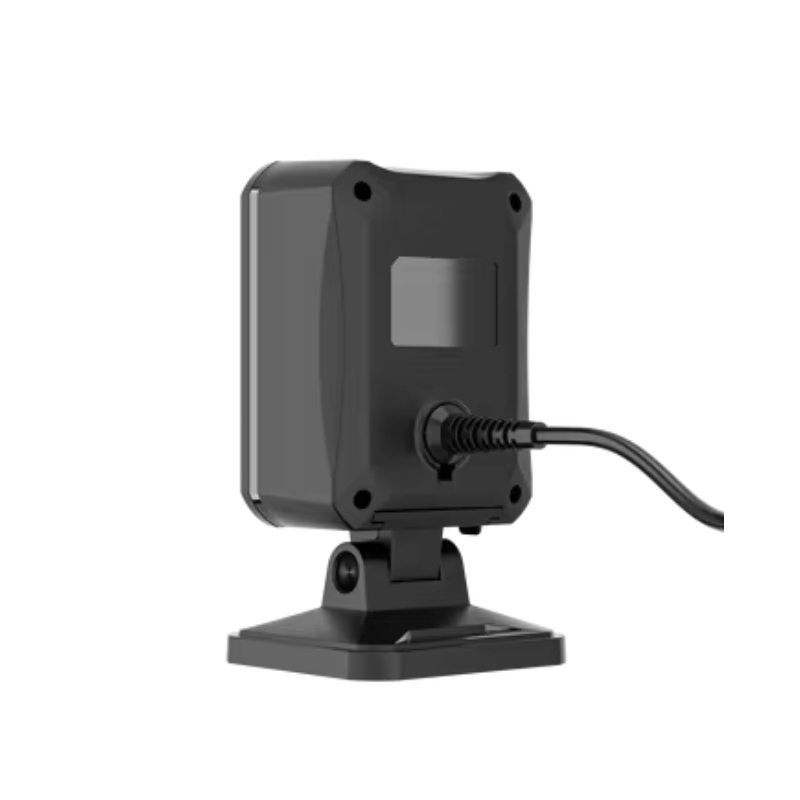

HENEX H2210 2D DESKTOP BARCODE SCANNER
- AVAILABILITY:
- SKU: 5325
- CATEGORY: BRAND NEW,BARCODE SCANNER
The HENEX H2210 2D Desktop Barcode Scanner is a reliable, high-performance scanning solution designed for busy retail, POS counters, and fixed workstations. It features a 2D CMOS sensor with fast decoding that reads both 1D and 2D barcodes from paper or screens, and a desktop cradle that enables hands-free scanning for efficiency. With plug-and-play USB connectivity, wide symbology support, and sturdy construction built for daily use, it delivers quick, accurate barcode capture in a compact, easy-to-use form factor.
2 YEAR WARRANTY
2D CMOS Sensor: High-resolution imaging for fast and accurate decoding of both 1D and 2D barcodes.
Scan Speed: Up to 200 scans per second for efficient throughput.
Wide Symbology Support: Reads popular codes including QR, DataMatrix, PDF417, UPC, EAN, and more.
Desktop Cradle: Stable hands-free scanning — just present the barcode under the scanner.
USB-C Connectivity: Plug-and-play USB-C interface handles both power and data with no drivers needed.
Durable Design: Compact and rugged for retail counters, POS systems, ticketing, and inventory stations.
IP54 Protection: Dust- and splash-resistant for reliable use in busy environments.
LED & Audio Feedback: Visual LED indicators and buzzer for clear scan confirmation.
Plug-and-Play: Easy installation with no extra software required.
| Model | H2210 |
| Type | 2D Omni-directional / Hands-free Desktop Scanner |
| Image Sensor | CMOS, 640 × 480 pixels |
| Light Source | Aiming: 617 nm LED; Illumination: 3500 K LED |
| Depth of Field | 0–160 mm @ EAN-13 (13 mil, PCS=100%) 0–150 mm @ QR (20 mil, PCS=100%) |
| Scan Angle | Left-right: ± 60° Front-back: ± 65° Rotation: 360° |
| Field of View | Horizontal ≥ 53°; Vertical ≥ 41° |
| Read Resolution | 4 mil |
| Print Contrast | 25% |
| Decode Capability | 2D: QR, Data Matrix, PDF417, Aztec, Maxicode, etc. 1D: UPC-A/E, EAN-8/13, JAN, Code 39, Codabar, Code 128, Code 93, ITF, IATA, MSI, RSS, etc. |
| Interface / Connectivity | TTL-232 (RS232), USB (HID keyboard, Virtual COM) |
| Motion Tolerance | Up to ~2 m/s (per some specs) |
| Protection / Durability | Drop resistance: withstands ~1.5 m drop |
| Power | Input: 5 V DC ± 10% Working current: ~400 mA |
| Ambient Light Tolerance | 0 – 100,000 lux (daylight) |
| Cable | 1.8 m straight cable standard |
| Dimensions (L × W × H) | 147 × 76.1 × 81.1 mm |
| Weight | 268.9 g (without cable) |
| Material | ABS + PC |
