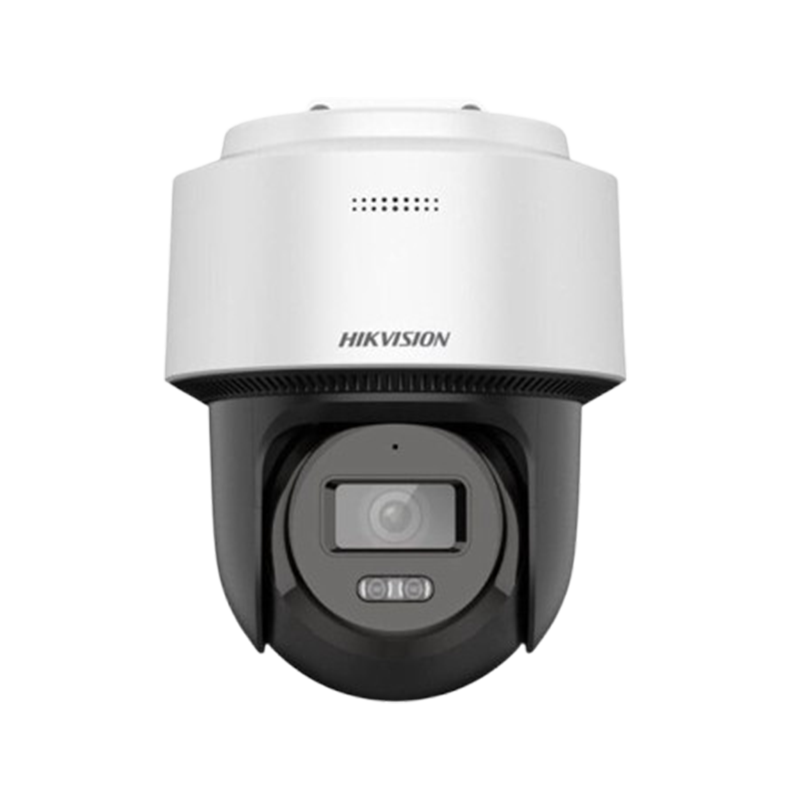

HIKVISION DS-2DE2C200MWG-4G PT NETWORK CAMERA

Camera

• Image Sensor: 1/3" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.04 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118° / 4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F2.0

PTZ

• Movement Range: (Pan) 0° to 345°
• Movement Range: (Tilt) 0° to 80°
• Pan Speed: Up to 25°/s
• Tilt Speed: Up to 20°/s

DORI

• DORI: 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m 4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m

Illuminator

• Supplement Light Type: IR, White
• Light Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
• 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (768 x 432) / 60 Hz: 30 fps (768 x 432)
• Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile,Main Profile,High Profile
• H.265 Type: Main Profile
• Bit Rate Control:
• CBR,VBR
• Region of Interest (ROI): 1 fixed region for mainstream

Audio

• Audio Type: Mono sound
• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711/AAC-LC
• Audio Bit Rate 64 Kbps: (G.711ulaw)/16 to 64 Kbps (AAC-LC)

Network

• API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
• Security: Password protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
• Simultaneous Live View: Up to 6 channels
• Protocols: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
• User/Host: Up to 32 users 3 user levels: administrator, operator, and user
• Client iVMS-4200,Hik-Connect
• Web Browser: Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

• Standard: LTE-TDD,LTE-FDD
• Frequency
• EU: LTE-FDD: B1/3/5/7/8/20/28
• IN: LTE-FDD: B1/3/5/8 , LTE-TDD: B34/38/39/40/41
• LA: LTE-FDD: B2/3/4/5/7/8/28/66
• NA: LTE-FDD: B2/4/5/12/13/17/66/71
• Uplink and Downlink Data Rate
• EU: uplink: 5.1 Mbps, downlink: 10.3 Mbps
• IN: uplink: 5.1 Mbps, downlink: 10.3 Mbps
• LA: uplink: 5.1 Mbps, downlink: 10.3 Mbps
• NA: uplink: 50 Mbps, downlink: 150 Mbps
• SIM Card Type: Nano SIM


• Wide Dynamic Range (WDR) Digital: WDR
• SNR: ≥ 52 dB
• Privacy Mask: 4 programmable polygon privacy masks
• Day/Night Switch: Day,Night,Auto,Schedule
• Image Enhancement: BLC, HLC,3D DNR
• Image Settings: Saturation,brightness, contrast,sharpness,gain, white balance, adjustable by client software or web browser


Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: 1 built-in microphone
• Built-in Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
• Reset Key: Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, auto-tracking lite

General

• Power: 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug, reverse polarity protection
• Dimension: 131.9 mm × 164 mm × 312.6 mm (5.19" × 6.46\" × 12.31\") 131.9 mm × 164 mm × 332.6 mm (5.19 × 6.46\" × 13.10\")"
• Material: Plastic
• Package Dimension: 224 mm × 178 mm × 230 mm (8.82" × 7.01" × 9.06")
• Weight Approx. 600 g (1.32 lb.)
• With Package Weight:  Approx. 900 g (1.98 lb.)
• Storage Conditions: -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, anti-banding, mirror, password protection, password reset via email
