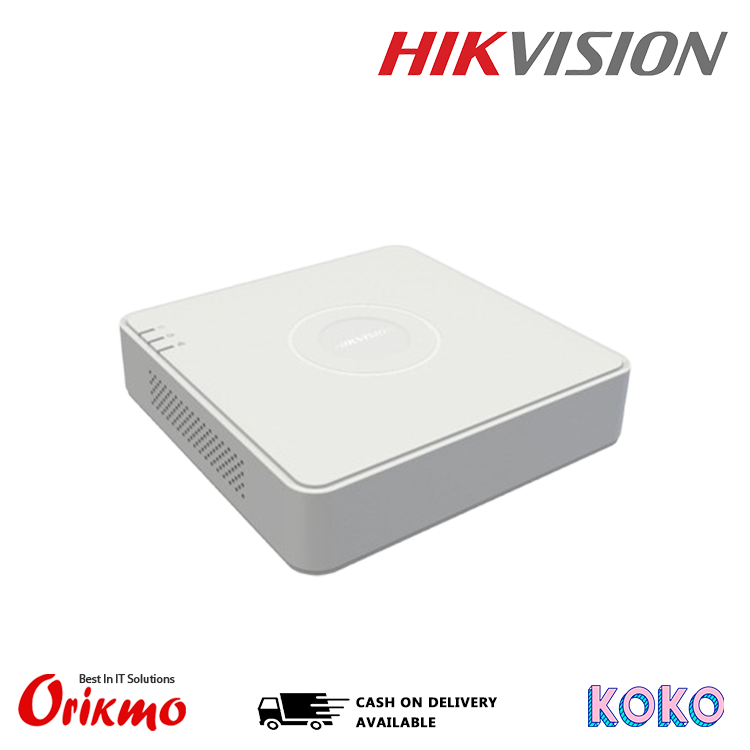

HIKVISION DS-7116HGHI-M1 DVR
- AVAILABILITY:
- SKU: 3192
- CATEGORY: CCTV ACCESSORIES,DVR
The Hikvision DS-7116HGHI-M1 DVR is a reliable 16-channel digital video recorder designed for efficient and secure CCTV monitoring. It supports multiple video formats (HDTVI, AHD, CVI, CVBS, and IP) with H.265+ compression, ensuring high-quality recording while reducing storage usage. Equipped with deep learning-based motion detection (human and vehicle classification), HDMI/VGA output, and support for up to 18 IP cameras and 6TB HDD storage, it provides smart, stable, and scalable surveillance for homes and businesses.
2 YEAR WARRANTY
📹 16-Channel DVR System: Supports up to 16 analog cameras for complete surveillance coverage
🔄 Hybrid Video Input (5-in-1): Compatible with HDTVI / AHD / CVI / CVBS / IP cameras for flexible setups
🧠 Smart Motion Detection 2.0: AI-powered human & vehicle detection reduces false alarms
📡 Supports Up to 18 IP Cameras: Expand system with IP cameras up to 5MP resolution
🎥 Full HD Output (HDMI & VGA): Simultaneous video output up to 1080p resolution
⚡ H.265 Pro+ Compression: Saves storage space while maintaining high video quality
🔊 Audio via Coaxial Cable: Supports audio transmission without extra wiring
🔁 16-Channel Playback: Simultaneous playback on all channels for easy monitoring
💾 1 SATA HDD Support (Up to 6TB–10TB): Large storage capacity for long recording duration
🌐 Remote Viewing (Hik-Connect): Access live view and playback via smartphone or PC
📶 Network Interface (RJ45): Stable LAN connection with remote access support
🔌 2× USB Ports: Easy backup and device control with mouse/USB drive
⚙️ Low Power Consumption (≤7W): Energy-efficient operation for continuous use
🌡️ Wide Operating Temperature (-10°C to 55°C): Reliable performance in different environments
🧱 Compact Mini 1U Design: Space-saving and easy installation for racks or desks
🎯 Ideal for CCTV Systems: Perfect for homes, shops, offices, and medium-scale security setups
| Brand | Hikvision |
| Model | DS-7116HGHI-M1 |
| Product Type | Turbo HD Digital Video Recorder (DVR) |
| Channels (Analog) | 16 Channels |
| IP Camera Support | Up to 18 channels (max 5MP) |
| Video Input Types | HDTVI / AHD / HDCVI / CVBS / IP (5-in-1) |
| Max Analog Resolution | 1080p Lite @ 15fps |
| Video Compression | H.265 Pro+ / H.265 / H.264+ / H.264 |
| Audio Input | 1 Channel RCA + Audio via coaxial |
| Audio Output | 1 Channel RCA |
| Two-Way Audio | Supported (via RCA) |
| HDMI Output | 1080p Full HD (1920×1080) |
| VGA Output | 1080p supported |
| Simultaneous Output | HDMI + VGA |
| Playback | 16-channel synchronous playback |
| Smart Features | Motion Detection 2.0 (Human & Vehicle detection) |
| Network Interface | 1 × RJ45 (10/100 Mbps) |
| Max Bandwidth | 96 Mbps |
| Remote Access | Hik-Connect, ONVIF support |
| Storage Interface | 1 × SATA HDD |
| Max HDD Capacity | Up to 6TB (some versions up to 10TB) |
| USB Ports | 2 × USB 2.0 |
| Power Supply | 12V DC, 2A |
| Power Consumption | ≤ 7W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Dimensions (W × D × H) | 285 × 210 × 48 mm |
| Weight | ≤ 1.8 kg (without HDD) |
| Usage | CCTV surveillance for home, shop, office |
