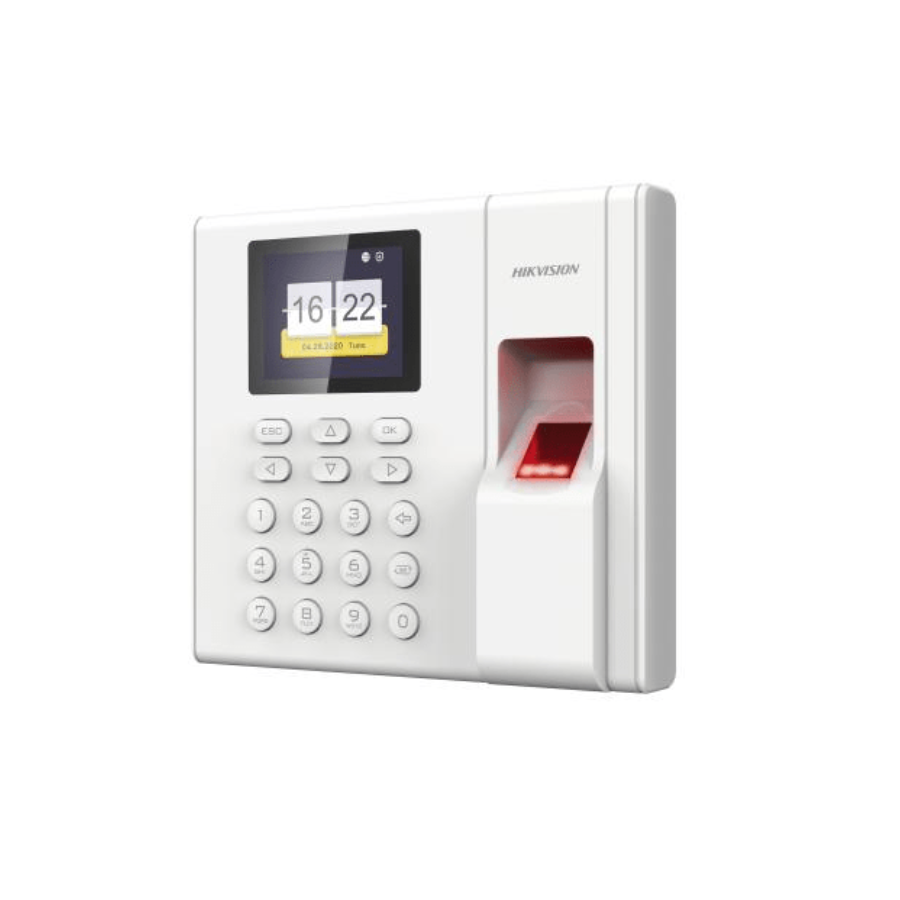

HIKVISION DS-K1A8503MF-B TIME ATTENDENCE TERMINAL
- AVAILABILITY:
- SKU: 5084
- CATEGORY: ALARM & SECURITY ACCESSORIES
The HIKVISION DS-K1A8503MF-B is a fingerprint-based time attendance terminal designed to help businesses and organizations track employee attendance quickly and accurately. It features a 2.4-inch LCD that shows time, date, and attendance details, supports up to 1000 users with fast fingerprint recognition, and can store up to 100,000 event records. The terminal works either standalone or on a network (TCP/IP), lets you download attendance reports via USB, and supports shift scheduling and multiple languages — making time keeping and reporting easier and more reliable.
2 YEAR WARRANTY
🖥️ 2.4″ LCD display — Shows time, date, day, and attendance info on a clear screen.
📶 TCP/IP communication — Wired network support with 10/100 Mbps Ethernet for data transfer.
🧠 Fast fingerprint recognition — Optical fingerprint module with 1:N mode for quick, accurate scans (recognition < 1 s).
👤 User capacity: Up to 1,000 users, Up to 1,000 fingerprints, Stores up to 100,000 event logs — suitable for mid-size teams.
📊 Flexible shift scheduling: Configure up to 32 normal shifts, 32 man-hour shifts, and 32 holiday attendance schedules.
🕐 Multiple attendance status: Tracks check-in, check-out, break-in, break-out, overtime in/out, etc.
💾 Standalone operation: Add users, cards, and fingerprints locally without external server.
📁 Report export: Download attendance reports easily via USB flash drive.
🌍 Multi-language support: Includes languages like English, Spanish, French, Arabic, Thai, Indonesian and more.
🔐 Protocol support: Compatible with ISAPI and ISUP 5.0 for integration and network communication.
🔌 Network & interface: 1× Ethernet (TCP/IP), 1× USB port for data export/import.
🔋 Battery support: Built-in support for backup battery (optional).
📍 Installation: Wall-mountable form for office entrances or attendance points.
🌡️ Operating range: Works in typical indoor conditions (−10 °C to +55 °C, 10–90 % humidity).
📦 Compact & sleek: White finish with compact size for professional environments.
| Product Name | HIKVISION DS-K1A8503MF-B Time Attendance Terminal |
| Display | 2.4-inch LCD-TFT screen for time, date, week, and attendance information |
| Network | Wired TCP/IP (10/100 Mbps), self-adaptive for reporting and management |
| Interfaces | 1 × Network port, 1 × USB port (for flash drive reports) |
| Authentication Method | Optical fingerprint module with 1:1 and 1:N matching |
| Fingerprint Capacity | Up to 1,000 fingerprints/users |
| Event Storage | Up to 100,000 attendance event records |
| Recognition Speed | < 1 s per fingerprint (fast recognition) |
| Attendance Modes | Supports 6 statuses (Check-in, Check-out, Break-in, Break-out, Overtime In/Out |
| Shift Scheduling | 32 normal shifts, 32 man-hour shifts, 32 holiday schedules configurable |
| Report Output | USB flash drive export of attendance reports |
| Multi-Language Support | Multiple languages (English, Spanish, French, Arabic, Thai, etc.) |
| Protocols Supported | ISAPI, ISUP 5.0 for integration with systems |
| Power Supply | 5 V DC / 1 A (adapter) |
| Operating Temp. | -10 °C to +55 °C (14 °F to 131 °F) |
| Operating Humidity | 10 % – 90 % (non-condensing) |
| Dimensions | 140 × 155 × 30 mm (5.51″ × 6.01″ × 1.18″) |
| Installation | Wall mounting (indoor) |
| Battery | Battery support included (backup option) |
