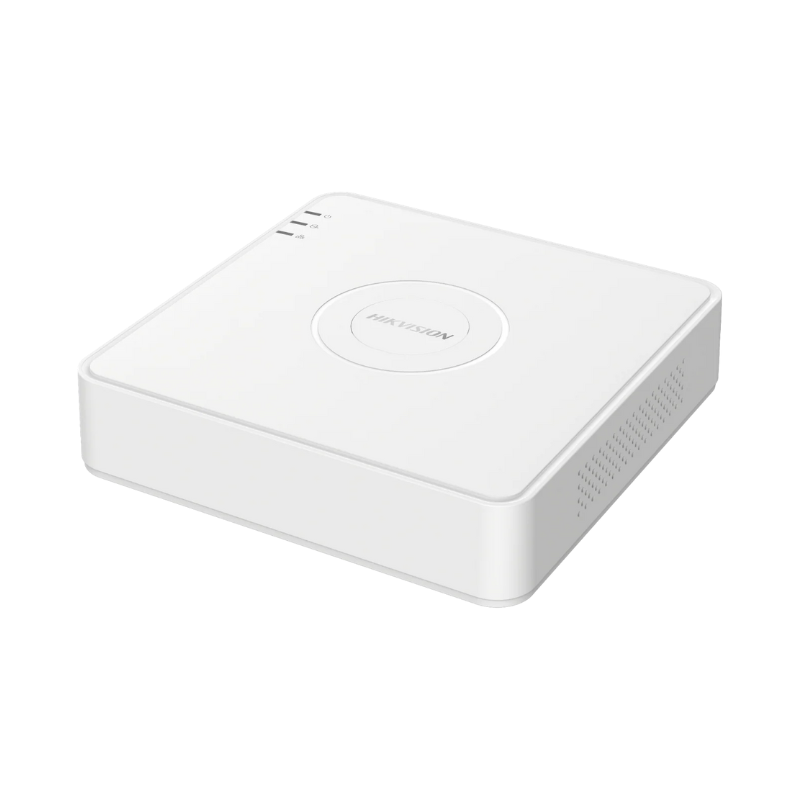

HIKVISION IDS-7108HQHI-M1/T 8 CHANNEL 1080P MINI ACUSENSE DVR
- AVAILABILITY:
- SKU: 3916
- CATEGORY: BRAND NEW,NETWORK ACCESSORIES
Hikvision iDS-7108HQHI-M1/T 8-Channel 1080P Mini AcuSense DVR is a compact surveillance recorder designed for reliable CCTV monitoring in homes, offices, and small businesses. It supports 8 analog camera channels and up to 12 IP camera inputs, delivering clear 1080p recording with advanced AcuSense deep-learning technology that distinguishes humans and vehicles to reduce false alarms. With H.265 Pro+ compression, HDMI/VGA output, remote viewing via network apps, and support for large-capacity hard drives, it provides efficient storage and smart security management in a compact DVR system.
2 YEAR WARRANTY
📹 8-Channel 1080P DVR: Supports up to 8 analog camera inputs (BNC) for reliable CCTV recording.
🧠 AcuSense AI Technology: Uses deep-learning human and vehicle detection to reduce false alarms from objects like leaves or lights.
🎥 Multiple Video Formats: Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras for flexible surveillance setups.
🌐 IP Camera Support: Allows connection of up to 12 IP cameras with resolutions up to 6MP in enhanced mode.
⚡ H.265 Pro+ Compression: Advanced video compression reduces storage usage while maintaining high image quality.
📺 HDMI & VGA Output: Supports simultaneous HDMI and VGA display up to 1080p resolution.
💾 Large Storage Capacity: Includes 1 SATA interface supporting hard drives up to 10TB for long-term recording.
🔎 Smart Search & Playback: Quickly find recordings using human/vehicle event detection and smart search features.
🌍 Remote Monitoring: Access cameras remotely through Hik-Connect app or web interface with up to 64 remote users.
🔌 Compact Mini 1U Design: Small, energy-efficient DVR with 12W power consumption and easy installation.
| Model / Series | Hikvision iDS-7108HQHI-M1/T (8-ch, 1080p Mini 1U, AcuSense) |
| Video Input / Channels | • 8 × analog video input (BNC) • Supports HDTVI, AHD, CVI, CVBS signal types • Up to 12 IP camera inputs (when used in enhanced IP mode) • Supports IP cameras up to 6 MP resolution |
| AcuSense / Smart Detection | • Deep learning-based Motion Detection 2.0: human / vehicle classification to reduce false alarms • Perimeter protection (intrusion detection) via deep learning • Facial detection: face picture detection + face picture search |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Encoding / Recording Resolution | • When 1080p Lite mode disabled: supports up to 3K / 5 MP Lite, 4 MP Lite, 3 MP, 1080p, 720p, VGA, etc • When 1080p Lite mode enabled: supports up to 5 MP Lite, 1080p Lite, 720p Lite, etc. • Encoding frame rates: e.g., up to 12 fps for 3K / 5 MP Lite. |
| Video Bitrate | 32 Kbps – 6 Mbps |
| Streams | Dual-stream (main + sub) support |
| Audio | • Audio input: 1 RCA or up to 4-ch via coaxial cable (optional) • Audio output: 1 RCA (linear) • Two-way audio: 1 channel (uses first audio input) • Audio compression: G.711u • Audio bitrate: 64 Kbps |
| Network / Remote Access | • 1 × RJ-45 Ethernet port (10/100 Mbps, self-adaptive) • Supported protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF • Remote connection support: up to 64 users • Wi-Fi connectivity: via a USB Wi-Fi dongle |
| Storage | • 1 × SATA interface for HDD • Max HDD capacity: up to 10 TB per disk • Smart search support for event playback |
| USB / Peripheral | 2 × USB 2.0 ports on rear panel |
| Video Output (Monitor) | • HDMI: 1 channel, up to 1920×1080 @ 60 Hz • VGA: 1 channel, up to 1920×1080 @ 60 Hz • HDMI + VGA can be used simultaneously |
| Power | • Power input: 12 V DC, 1.5 A • Power consumption: ≤ 12 W (without HDD) |
| Maximum Remote Users | 64 connections (remote) |
