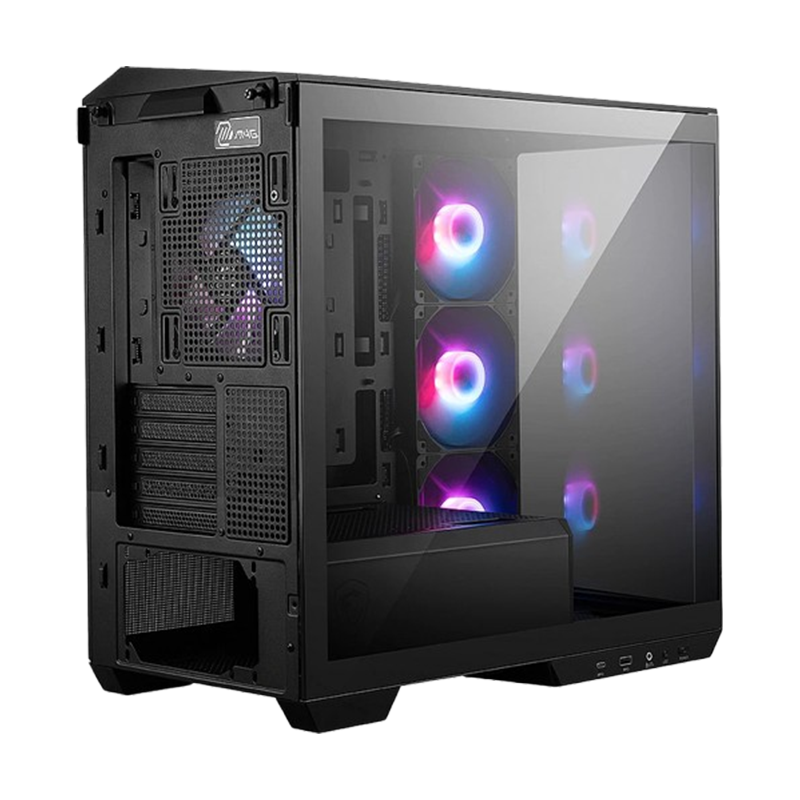

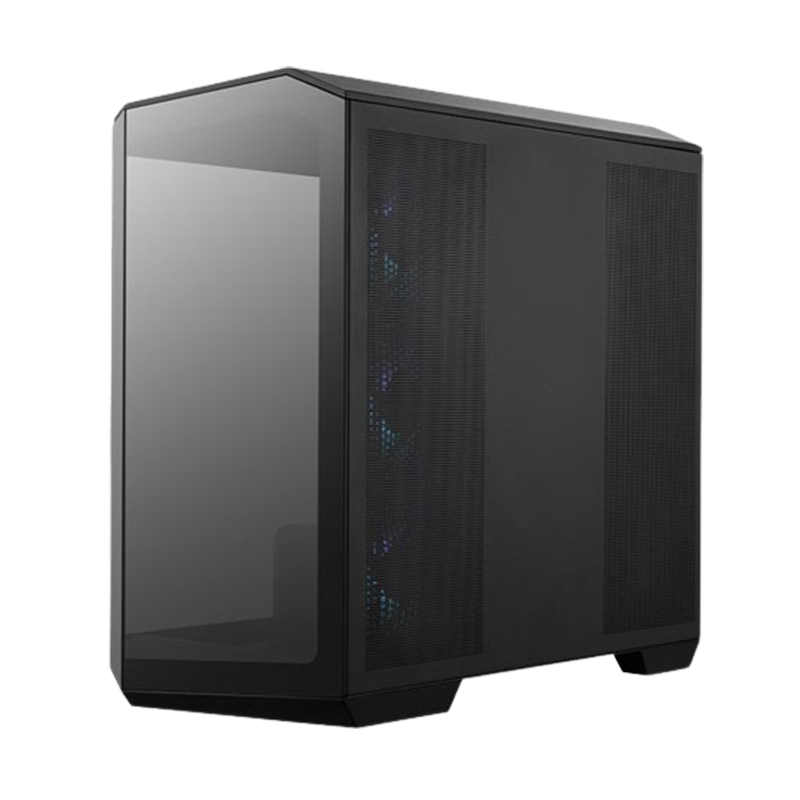

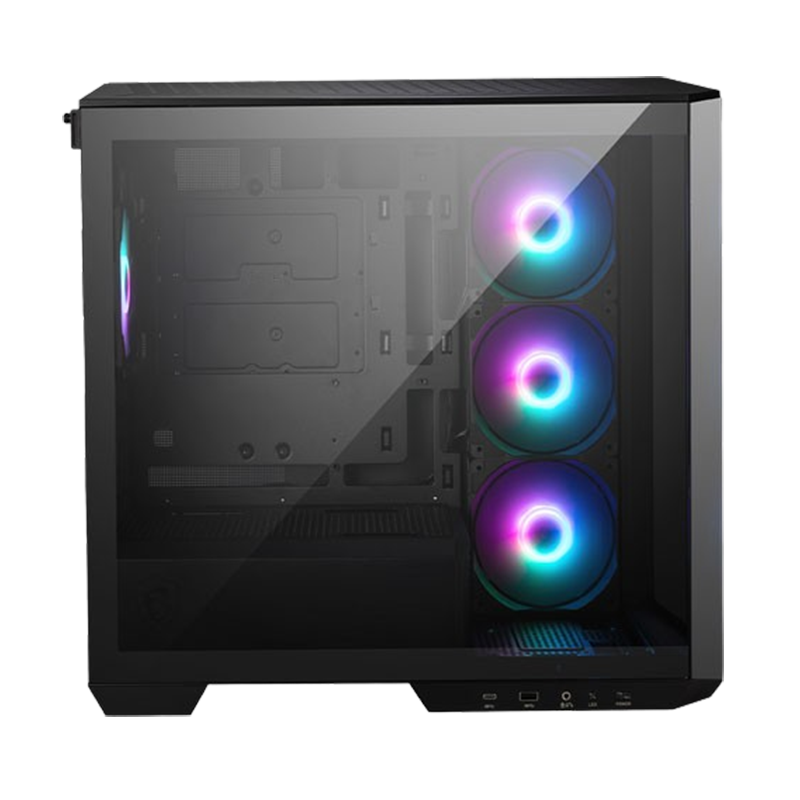

MSI MAG PANO M100R PZ BLACK CASE 306-7G24R21-809
- AVAILABILITY:
- SKU: 0001988
- CATEGORY: PC ACCESSORIES,CASING,GAMING ACCESSORIES
Rs. 36,000.00Rs. 33,000.00
- Brand: MSI
- Part Number: 306-7G24R21-809
- Case Type: ATX - Full Tower
- Side Panel: Glass Windowed
- Lighting: RGB
2 YEAR WARRANTY
Form Factor: Mid Tower
Motherboard Support: ATX, mATX, ITX
Front Panel: Full mesh design for optimal airflow with ARGB lighting
ARGB Lighting: Pre-installed ARGB fans (1x 120mm rear fan, additional fans can be added)
Fan Support: Front: 3x 120mm or 2x 140mm fans / Top: 2x 120mm fans / Rear: 1x 120mm fan (included)
Radiator Support: Front: Up to 360mm radiator / Top: Up to 240mm radiator / Rear: 120mm radiator
Storage Support: 2x 3.5" HDD / 2x 2.5" SSD
Expansion Slots: 7
Side Panel: Tempered glass
I/O Ports: 1x USB 3.2 Gen 1, 2x USB 2.0, Audio In/Out, RGB control button
Dimensions: 435 x 210 x 475 mm (L x W x H)
| PRODUCT NAME | MAG PANO M100R PZ / WHITE |
| CASE FORM FACTOR | Micro- ATX Tower |
| MOTHERBOARD FORM FACTOR SUPPORT | M-ATX(Back-connect supported) / ITX |
| I/O PORTS | 1 x USB 3.2 Gen 1 Type-A |
| 1 x USB 3.2 Gen 2x2 Type-C | |
| 1 x Audio-Out / Mic-in | |
| 1 x LED Switch Button | |
| 1 x Power Button | |
| DRIVE MOUNT SUPPORT | 1 x 2.5” |
| 1 x 2.5”/3.5” combo | |
| (up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) | |
| EXPANSION SLOTS | 5 |
| MAXIMUM GPU LENGTH | 390 mm / 15.35 inches |
| *Support horizontal installation only. | |
| MAXIMUM CPU COOLER HEIGHT | 175 mm / 6.9 inches |
| POWER SUPPLY SUPPORT | ATX |
| MAXIMUM PSU LENGTH | 200 mm / 7.87 inches |
| FAN SIZE SUPPORT | Top: 3 x 120 mm / 2 x 140 mm |
| Front: NA | |
| Rear: 1 x 120 mm / 1 x 140 mm | |
| Side: 3 x 120 mm | |
| Bottom: 1 x 120 mm | |
| PSU Shroud: 2 x 120 mm | |
| PRE-INSTALLED FAN SIZE | Side: 3 x 120 mm |
| Rear: 1 x 120 mm | |
| PRE-INSTALLED FAN TYPE | Side: 3 x ARGB Fan (Reverse-blade) |
| Rear: 1 x ARGB Fan | |
| RADIATOR SIZE SUPPORT | Top: 120 / 240 / 360 mm |
| Front: NA | |
| Rear: 120 / 140 mm | |
| Side: NA | |
| Bottom: NA | |
| DIMENSIONS (DXWXH) | 440 x 235 x 405 mm / 17.32 x 9.25 x 15.94 inches |
| 8.66 kg | |
| NET WEIGHT | |
| GROSS WEIGHT | 11.29 kg |
