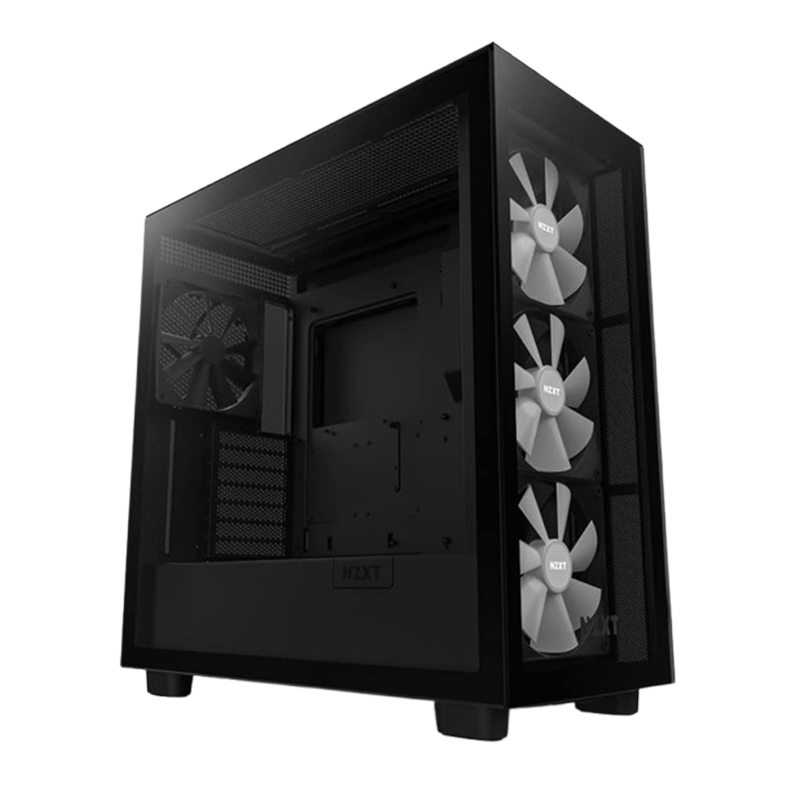

NZXT H7 ELITE BLACK ATX MID TOWER CASE CM-H71EB-02
- AVAILABILITY:
- SKU: 0001517
- CATEGORY: PC ACCESSORIES,CASING,GAMING ACCESSORIES
Rs. 55,000.00Rs. 51,000.00
- Brand:NZXT
- Part Number:CM-H71EB-02
- Case Type:ATX - Full Tower
- Side Panel:Glass Windowed
- Lighting:RGB
2 YEAR WARRANTY
Form Factor: Mid Tower (ATX)
Motherboard Support: ATX, Micro-ATX, Mini-ITX
Dimensions: 502 x 230 x 510 mm (L x W x H)
Material: Steel, Tempered Glass
Cooling Support:
- Front: 3 x 120mm or 2 x 140mm fans (2 x 140mm fans pre-installed)
- Top: 3 x 120mm or 2 x 140mm fans
- Rear: 1 x 120mm fan (pre-installed 120mm fan)
- Radiator support: Up to 360mm front, 280mm top, 120mm rear
Drive Bays:
- 2 x 3.5" HDD (tool-free)
-
4 x 2.5" SSD
| KEY SPECS |
| Motherboard Support : Mini-ITX, Micro-ATX, ATX |
| Enclosure Type : Mid-Tower |
| Case Material : SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only) |
| FAN SUPPORT |
| Front : 3 x 120mm / 3 x 140mm |
| Top : 3 x 120mm / 2 x 140mm |
| Rear : 1 x 120mm / 1 x 140mm |
| Filters : All Air Intakes |
| DIMENSIONS |
| Height : 505mm (With Feet) |
| Width : 230mm |
| Depth : 480mm |
| Weight : 11.36 kg |
| RADIATOR SUPPORT |
| Front : Up to 360mm with Push/Pull |
| Top : Up to 360mm |
| Rear : Up to 140mm |
| COMPATIBILITY & CLEARANCE |
| Max CPU Cooler Clearance : Up to 185mm |
| Max GPU Clearance : Up to 400mm |
| Front Radiator Clearance : 60mm |
| Top Radiator Clearance : 30mm |
| Cable Management : 18-22mm |
| FAN SPECS |
| Model : F140Q (Case Version) |
| Speed : 1200 ± 240RPM |
| Airflow : 99.56 CFM |
| Static Pressure : 1.14 mm-H2O |
| Noise : 24.18 dBA |
| Fan Connector : 3-pin |

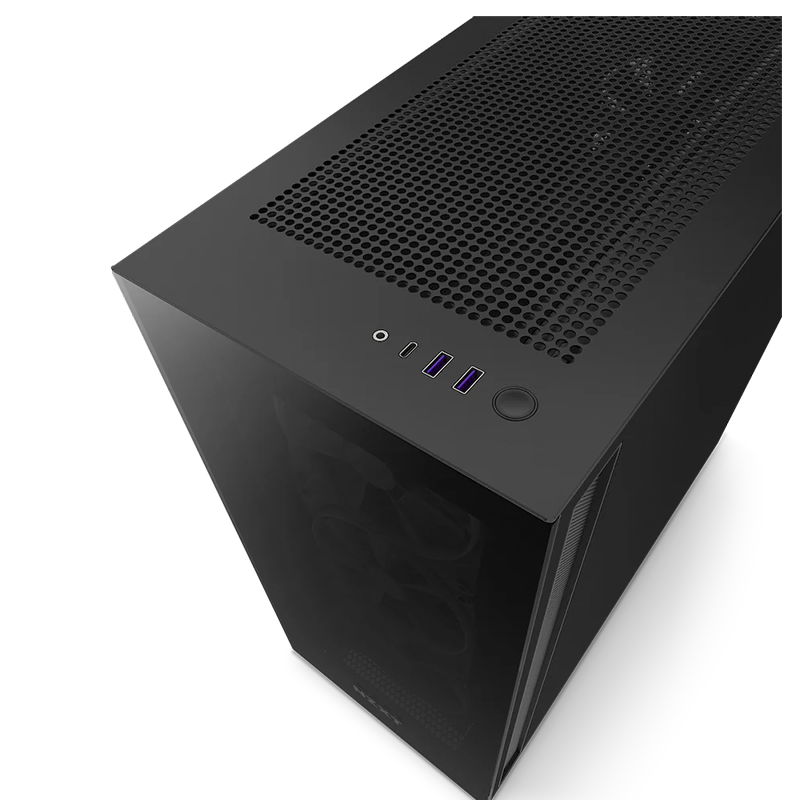

| FRONT I/O PORTS |
| USB 3.2 Gen 1 Type-A : 2 |
| USB 3.2 Gen 2 Type-C : 1 |
| Headset Audio Jack : 1 |
| FAN SPECS |
| Model : F140 RGB |
| Speed : 500 - 1800 RPM |
| Airflow : 24.85 - 89.48 CFM |
| Static Pressure : 0.94 - 3.39 mm-H2O |
| Noise : 20 - 32.5 dBA |
| Fan Connector : 4-pin |
| RGB AND FAN CONTROLLER |
| Fan Channels : 3 |
| NZXT RGB Connector : 6 (Support up to 120 LEDs) |
| EXPANSION SLOTS |
| Standard : 7 |
| Vertical : 0 |
| DRIVE BAYS |
| 2.5" : 4+2 |
| 3.5" : 2 |
