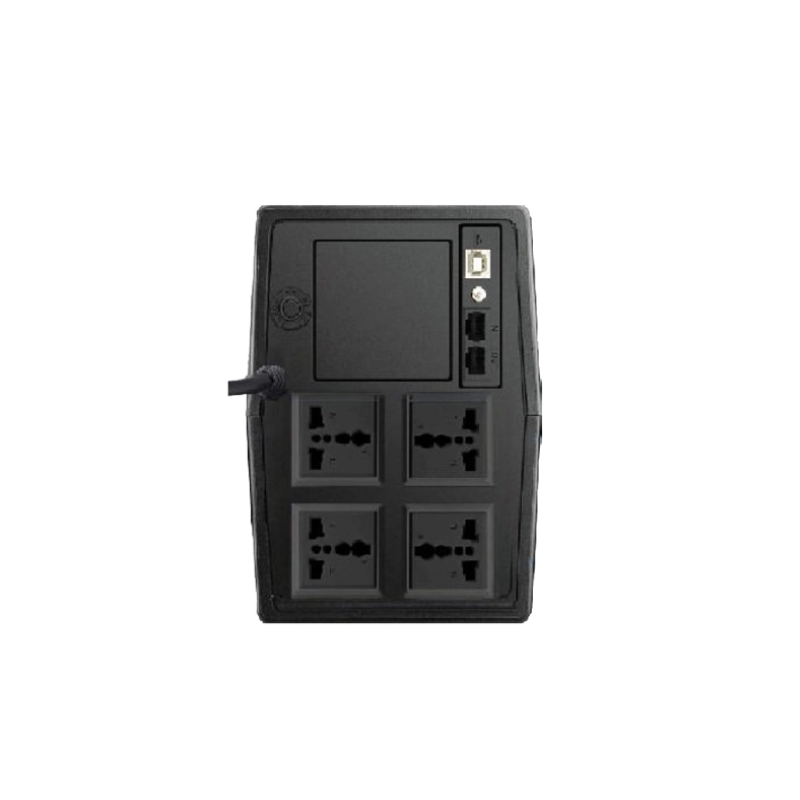

PROLINK 1.2KV UPS
- AVAILABILITY:
- SKU: 1192
- CATEGORY: PC ACCESSORIES,UPS
The PROLiNK 1.2 kVA UPS is a standby power backup system designed to protect your computers, home office equipment, and network devices from power outages, surges, and voltage fluctuations. With 1,200 VA (≈ 1.2 kVA) capacity, it supplies reliable backup power for essential devices, features AVR (Automatic Voltage Regulation) for smoother output, and includes multiple outlets for connecting PCs, monitors, and peripherals — making it ideal for short-duration power interruptions and safeguarding your electronics.
2 YEAR WARRANTY
⚡ Capacity: 1.2 kVA / ~720 W — provides backup power for PCs, modems, routers, CCTV, and essential electronics.
🔄 Type: Line-Interactive UPS with built-in Automatic Voltage Regulation (AVR) to stabilize input voltage and protect against brownouts and surges.
🔌 Input Voltage Range: 140 – 300 V ±5 % — wide range handles unstable mains power.
📤 Output Voltage: 230 VAC ±10% in both AC and battery modes.
⏱ Fast Transfer Time: ~2 ms typical switching to battery during power failure.
🔋 Battery: 2 × 12 V lead-acid batteries (8.2 Ah or 9 Ah) — maintenance-free sealed units.
⏳ Backup Time: ~8 – 30 minutes depending on load — enough to save work and safely shut down devices.
⚡ Recharge Time: 2 – 4 hours to recover ~90 % battery capacity.
🧯 Protections — Surge & spike protection, Short-circuit protection, Overload protection
🔧 Waveform: Simulated sine wave output during battery mode, true sine wave in AC mode.
📡 Automatic Indicators: Audible and LED indicators for AC, battery, overload, and fault status.
🖥️ Wide Compatibility: Works with Windows, Linux, Unix, and Mac systems via software support where available.
📏 Form Factor: Compact design with straightforward installation and multiple AC output sockets.
| Model / Type | PROLiNK PRO1201SFC — Line-Interactive UPS |
| Capacity | 1200 VA ~720 W |
| Input | Voltage Range: 140 – 300 V ±5% Frequency: 50 Hz / 60 Hz (auto-sensing) Phase: Single + Ground |
| Output | Voltage Range: ~230 VAC +12% / –14% Battery Mode Output: 230 VAC +10% / –10% Frequency (on battery): 50 Hz ±1% Waveform: Simulated sine wave (battery), Sine wave (AC) |
| Transfer Time | 2 ms |
| Battery | Type: 2 × 12 V, 8.2 Ah (or 9 Ah in some specs) Recharge Time: 2 – 4 hours to 90% capacity Backup Time: ~8 – 30 minutes, depending on load |
| Protection / Monitoring | Short circuit: Yes (both line & battery mode) Surge protection: Yes Overload protection: - Line mode: 100–120% — 5 min to fault; > 120% → shutdown immediately - Battery mode: 100–110% → alarm then shutdown in ~10s; > 120% → immediate shutdown Battery management: Intelligent battery management to prevent overcharging & prolong life Alarm: Audible + visual |
| Automatic Voltage Regulation (AVR) | Built-in 3-step AVR (“boost and buck”) for voltage stabilization |
| Interface / Ports | RJ-11 (for modem/fax protection) Software support: Windows (2000, XP, Vista, 7, etc.), Linux, Unix, Mac |
| Weight | 8.6 kg |
