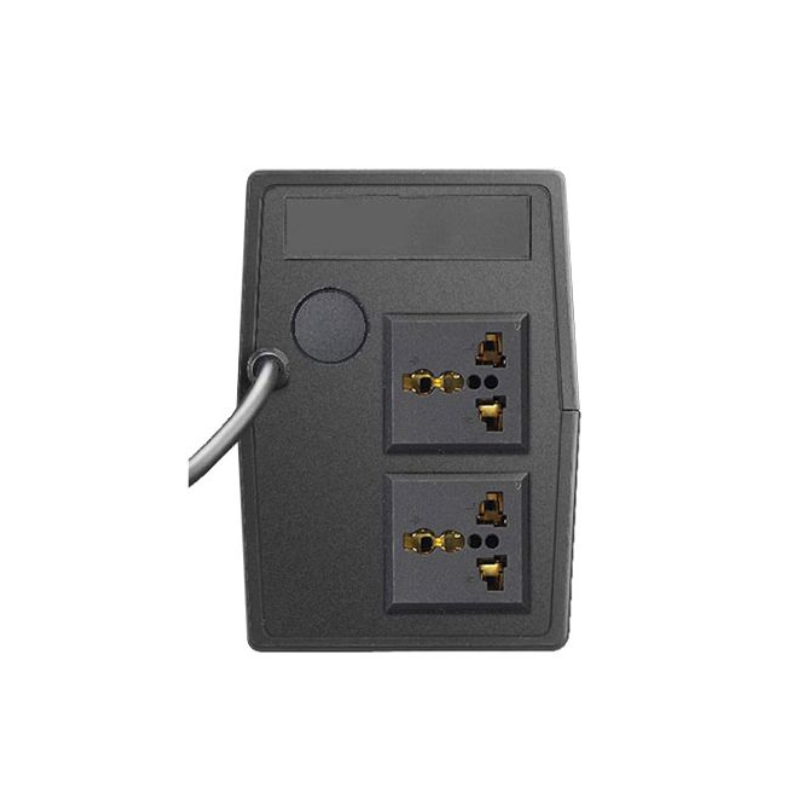

PROLINK PRO701SFC LINE INTERACTIVE 650V UPS
- AVAILABILITY:
- SKU: 5044
- CATEGORY: PC ACCESSORIES,UPS
The PROLiNK PRO701SFC Line Interactive 650VA UPS is a compact power backup solution designed to protect your PCs, routers, and other sensitive electronics from power outages, surges, and fluctuations. It features line-interactive topology with automatic voltage regulation (AVR) and super-fast charging, delivering 650 VA of backup power with simulated sine wave output, plus built-in protections and indicators to keep your devices stable and safe during short power interruptions.
2 YEAR WARRANTY
⚡ Capacity: 650 VA backup power for home and small office electronics (PCs, modems, routers, CCTV).
🔄 Line-Interactive UPS: Automatically regulates voltage and switches to battery during power failure.
📥 Wide Input Voltage Range: Operates from ~162 V to 300 V AC to handle unstable mains.
⚡ Stable Output: 220–240 VAC output in both AC and battery modes.
🔋 Battery: Single 12 V / 8.2 Ah sealed lead-acid battery included.
⏱ Backup Time: Provides ~8–20 minutes of runtime depending on load — enough to save work and shut down safely.
🔌 Fast Recharge: Battery recharges to ~90 % capacity in 2–4 hours.
💡 Output Waveform: Simulated sine wave during battery mode, pure sine wave in mains mode.
⚡ Quick Transfer: ~2 ms switching time from mains to battery during outages.
🧯 Protection Features: Surge protection for connected devices, Short-circuit and overload protection safeguards both UPS and load, Intelligent battery management prevents overcharging.
📊 Indicators & Alarms: LED (and optional LCD) status indicators with audible alarms for battery mode, low battery, overload, and faults.
🧠 Interfaces (Optional): RS-232, USB, and network (RJ45/RJ11) support for communication and monitoring (varies by model).
📏 Compact Build: Approx. 286 × 96 × 138 mm, weighs ~4.3 kg — easy to fit near your system.
| Model / Type | PROLiNK PRO701SFC — Line-Interactive UPS |
| Capacity | 650 VA |
| Input | - Voltage Range: 140–300 VAC (double-boost) - Alternate spec: 162–290 VAC (single-boost) - Frequency: 50 / 60 Hz, auto-sensing - Phase: Single + Ground |
| Output | - Voltage Range: 220–240 VAC - On Battery: 220–240 VAC - Frequency (Battery Mode): 50Hz ± 1% - Waveform: Simulated sine wave on battery, sine on AC |
| Transfer Time | 2 ms typical |
| Battery | - Type: 12 V, 8.2 Ah × 1 - Recharge Time: 2–4 hours to ~90% - Backup Time: ~8–20 minutes depending on load |
| Protection / Monitoring | - Short Circuit: Yes, both line & battery mode - Surge Protection: Yes - Overload Protection: Line mode 100–120% (1 min), >120% immediate fault; Battery mode similar behavior. - Alarm: Audible + Visual for battery low, fault, overload etc. - Intelligent Battery Management: Yes (overcharge + deep-discharge protection) |
| Automatic Voltage Regulation (AVR) | 3-step AVR (boost & buck) for voltage stabilization. |
| Interface / Ports | - RS232, optional USB, optional RJ-11 / RJ-45 for surge protection - Indicators: LED (some models may also have LCD) |
| Noise / Operating Conditions | - Noise: < 40 dB - Operating Temperature: 0 °C – 40 °C - Humidity: 0% – 90% (non-condensing) |
| Physical / Dimensions | - Dimensions: 286 × 96 × 138 mm (or 324 × 220 × 140 mm depending on source) - Weight: ~4.3 – 4.25 kg depending on listing |
| Special Features | - Super-Fast Charging: 90% battery in 2–4 hours - Cold Start (start on battery without AC) - Auto-restart when AC returns |
