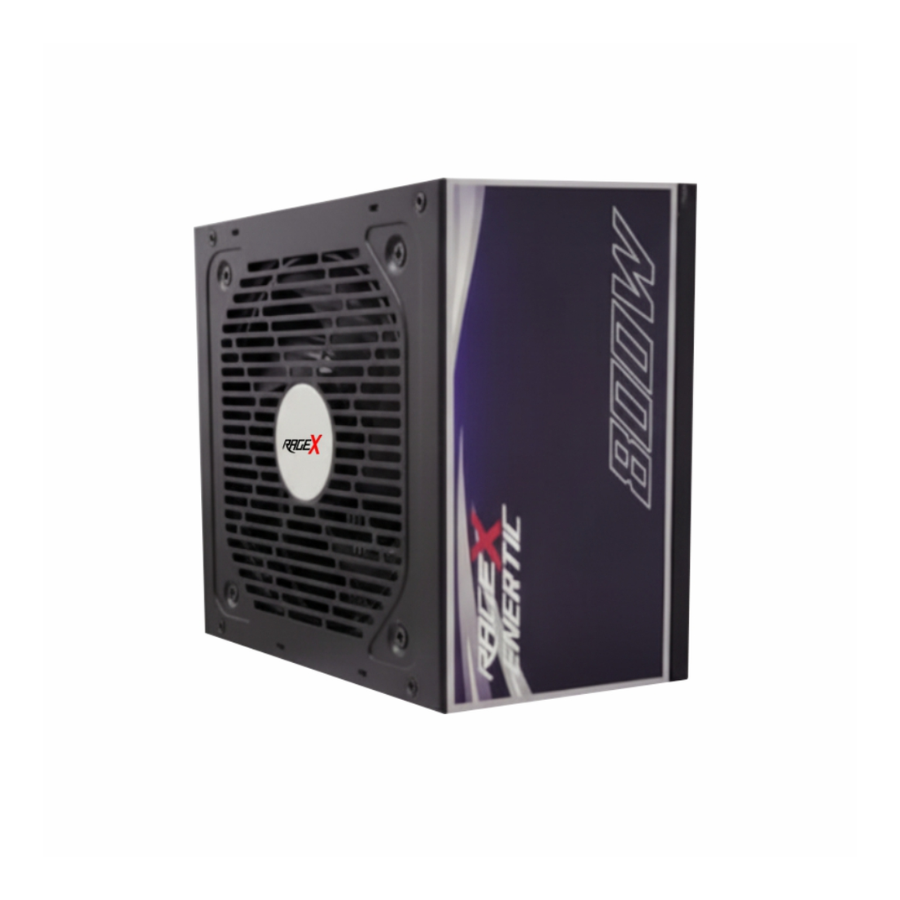

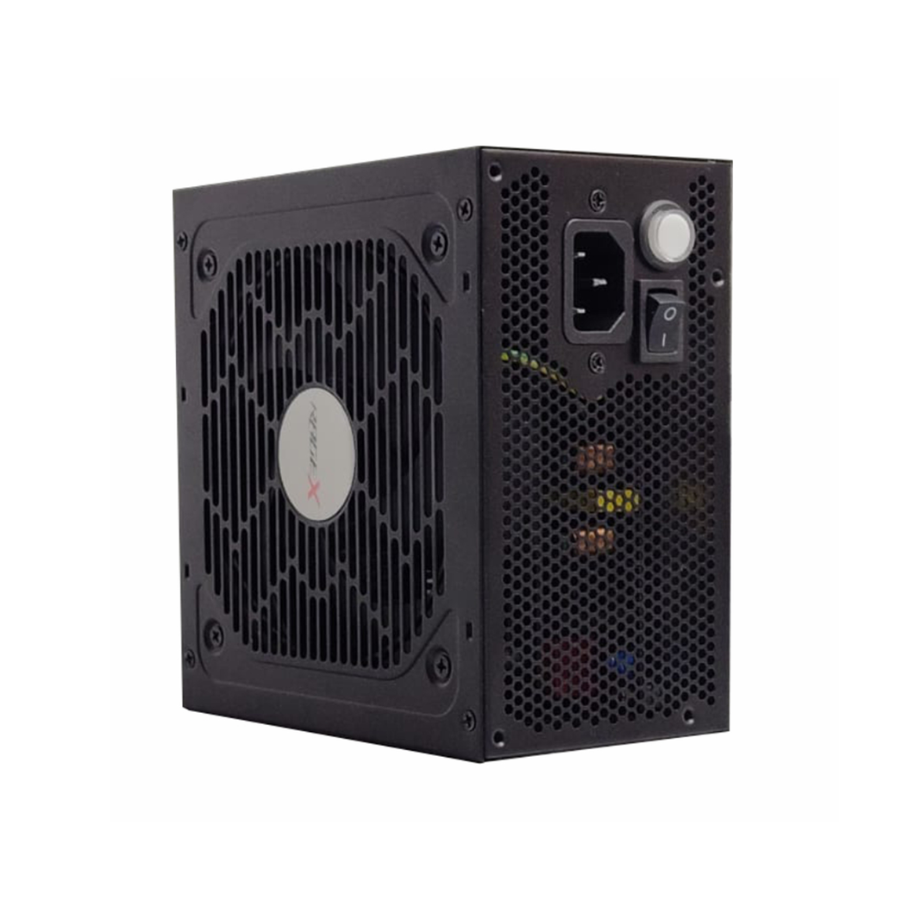

RAGEX 800W 80PLUS BRONZE POWER SUPPLY UNIT
- AVAILABILITY:
- SKU: 3025
- CATEGORY: POWER SUPPLY,GAMING ACCESSORIES
The RAGEX 800W 80 Plus Bronze Power Supply Unit is a high-performance PSU built to deliver stable, efficient, and reliable power for gaming PCs, workstations, and high-end desktop systems. Featuring 800W output with 80 Plus Bronze certification, it ensures improved energy efficiency, lower power consumption, and reduced heat generation. Equipped with a 24-pin ATX connector, a quiet high-efficiency cooling fan, and multiple power connectors, it provides dependable power for modern Intel and AMD platforms. Advanced protection features, including overvoltage, overcurrent, overload, and short-circuit protection, help safeguard your components, making the RAGEX 800W Power Supply Unit an excellent choice for powerful and reliable PC builds.
5 YEAR WARRANTY
⚡ 800W Power Output – Delivers stable and reliable power for gaming and high-performance desktop PCs.
🥉 80 Plus Bronze Certified – Provides improved energy efficiency with reduced power consumption and heat generation.
🔌 24-Pin ATX Main Connector – Compatible with most modern Intel and AMD ATX motherboards.
🎮 Ideal for Gaming PCs – Supports gaming systems with dedicated graphics cards and high-performance components.

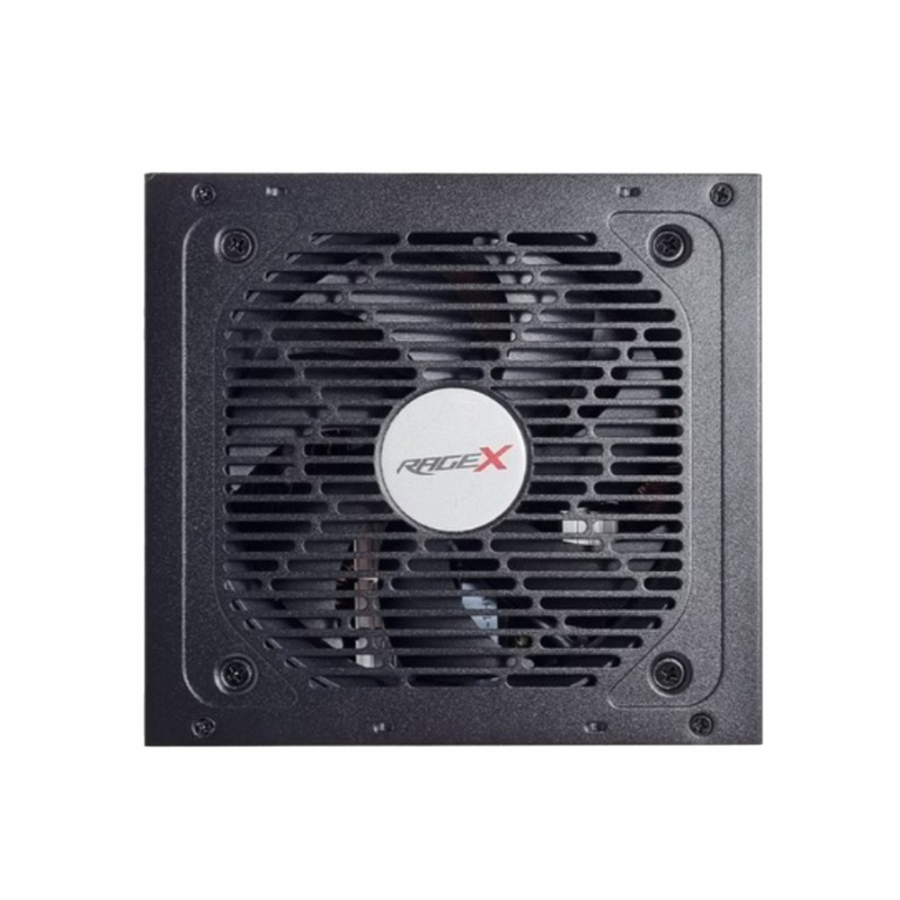

🌬️ 120mm Silent Cooling Fan – Efficient cooling with low-noise operation for enhanced system stability.
🛡️ Multiple Protection Features – Includes over-voltage, over-current, over-power, short-circuit, and under-voltage protection.
⚙️ Stable Voltage Output – Ensures consistent power delivery for reliable system performance.
💾 Multiple Power Connectors – Supports SATA SSDs, HDDs, PCIe graphics cards, and other PC components.
💻 Compatible with Intel & AMD Platforms – Suitable for a wide range of desktop computer builds.
🏗️ Durable Construction – Built with quality components for long-lasting and dependable operation.
🔧 Easy Installation – Standard ATX form factor fits most gaming and desktop PC cases.
🛡️ Reliable Performance – Designed for continuous operation in gaming, productivity, and workstation environments.
| Brand | RAGEX |
| Model | 800W 80 Plus Bronze |
| Product Type | ATX Power Supply Unit (PSU) |
| Form Factor | ATX |
| Rated Power Output | 800W |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | Up to 85% (Typical Load) |
| Main Power Connector | 24-Pin ATX (20+4 Pin) |
| CPU Power Connectors | 2 × 4+4 Pin (8-Pin) EPS |
| PCIe Power Connectors | 2 × 6+2 Pin PCIe |
| SATA Power Connectors | 5 × SATA |
| Molex Connectors | 4 × 4-Pin Molex |
| +12V Rail | Single +12V Rail |
| Active PFC | Yes |
| Input Voltage | 100–240V AC |
| Input Frequency | 50–60Hz |
| Cooling Fan | 120mm Silent Cooling Fan |
| Fan Control | Intelligent Temperature-Controlled |
| Cable Type | Fixed Cables |
| Protection Features | OVP (Over Voltage), UVP (Under Voltage), OCP (Over Current), OPP (Over Power), SCP (Short Circuit), OTP (Over Temperature) |
| MTBF | >100,000 Hours |
| Housing Color | Black |
| Compatibility | Standard ATX Computer Cases |
| Applications | Gaming PCs, Workstations, Content Creation, Home & Office Computers |
