RED LINK CCTV I BRACKET 30CM RL-CCTV-I-30CM
- AVAILABILITY:
- SKU: 1465
- CATEGORY: CCTV ACCESSORIES

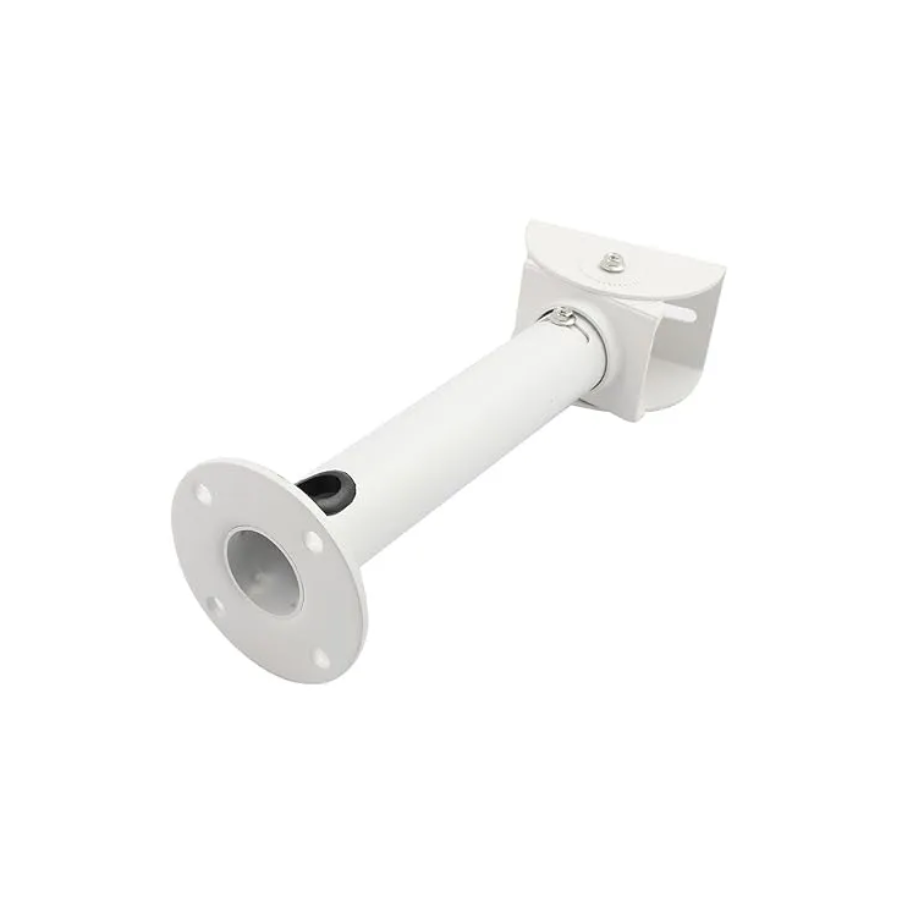

The RED LINK CCTV I Bracket 30 cm (RL‑CCTV‑I‑30CM) is a metal mounting bracket designed to securely hold and position a surveillance camera about 30 cm away from the mounting surface, making it easier to achieve optimal camera sightlines on exterior walls or ceilings. Made from sturdy, corrosion‑resistant materials, this bracket is compatible with most standard CCTV camera housings and helps keep cables neat by allowing them to feed through the bracket during installation.
🛠️ CCTV mounting bracket — designed to securely attach surveillance cameras to walls or ceilings.
📏 Bracket length: 30 cm extension arm — sets cameras away from the wall for improved viewing angles and coverage.
💪 Sturdy build: Typically made from aluminum alloy or powder‑coated metal — strong and durable for indoor and outdoor use.
🎯 I‑type straight arm design — simple, versatile mounting style that works with many CCTV camera models.
🔩 Easy installation: Mounts with screws to wall surfaces; camera fixed at bracket end.
📌 Cable management: Allows routing of camera cables through or along the bracket to keep wiring neat.
🌦️ Indoor/outdoor suitable: Durable finish and design for varied environments (weather resistance depends on finish).
🖥️ Wide compatibility: Works with most bullet, dome, and turret CCTV cameras that use standard mounting holes.
🏡 Ideal for: Home, office, retail, and commercial surveillance applications needing extended camera positioning.
| Product Name | RED LINK CCTV I Bracket 30 cm (RL-CCTV-I-30CM) |
| Bracket Type | I-type CCTV Camera Mount Bracket (straight extension design) |
| Length / Extension | 30 cm (extends camera out from wall / surface) |
| Material | Aluminium alloy (powder-coated) – durable and weather-resistant |
| Finish | Powder-coated surface for corrosion resistance |
| Compatibility | Fits most CCTV cameras (bullet, dome with adapter, HD/IP cameras) |
| Mounting Surface | Wall or ceiling (flat surfaces) |
| Cable Management | Cable feed through bracket tube allows neat cable routing |
| Tube Diameter | ~38.1 mm (1.5 inch) typical for I-brackets |
| Base Plate Diameter | ~88 mm (standard mounting plate size) |
| Mounting Hole Spacing | ~50 mm center-to-center (standard bolt pattern) |
| Maximum Load Capacity | ~7.5 kg (supports most security cameras) |
| Use Case | Fixed mount for outdoor/indoor CCTV cameras to achieve better viewing angles and coverage |
