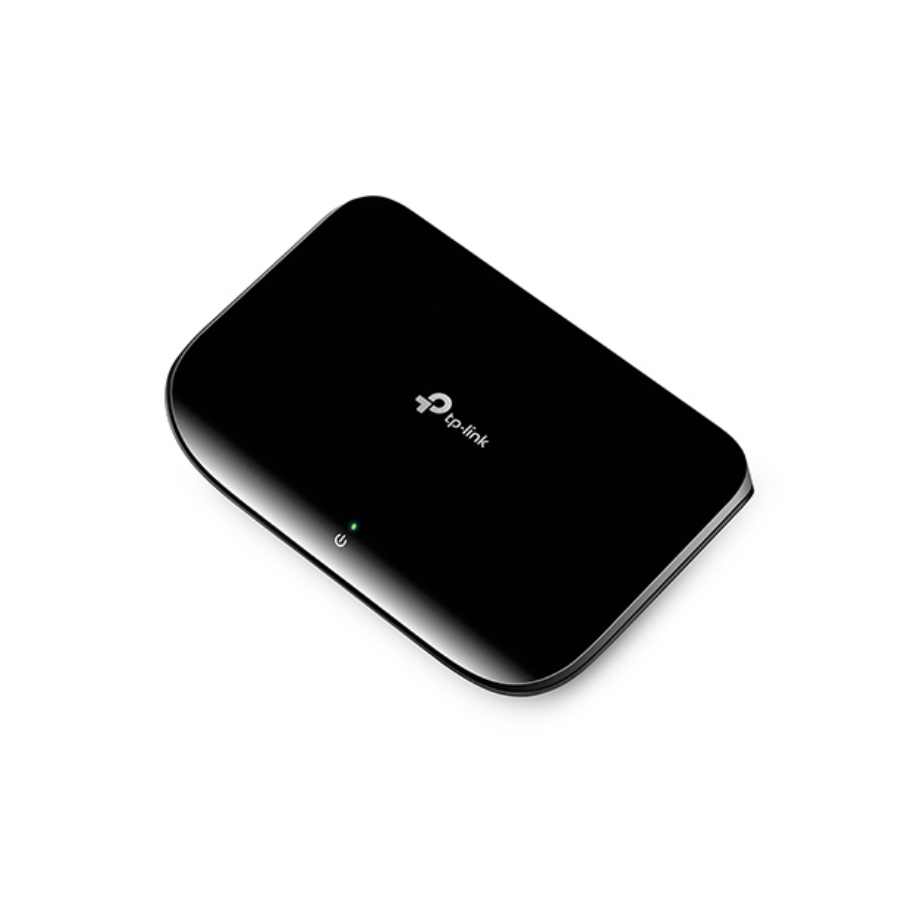

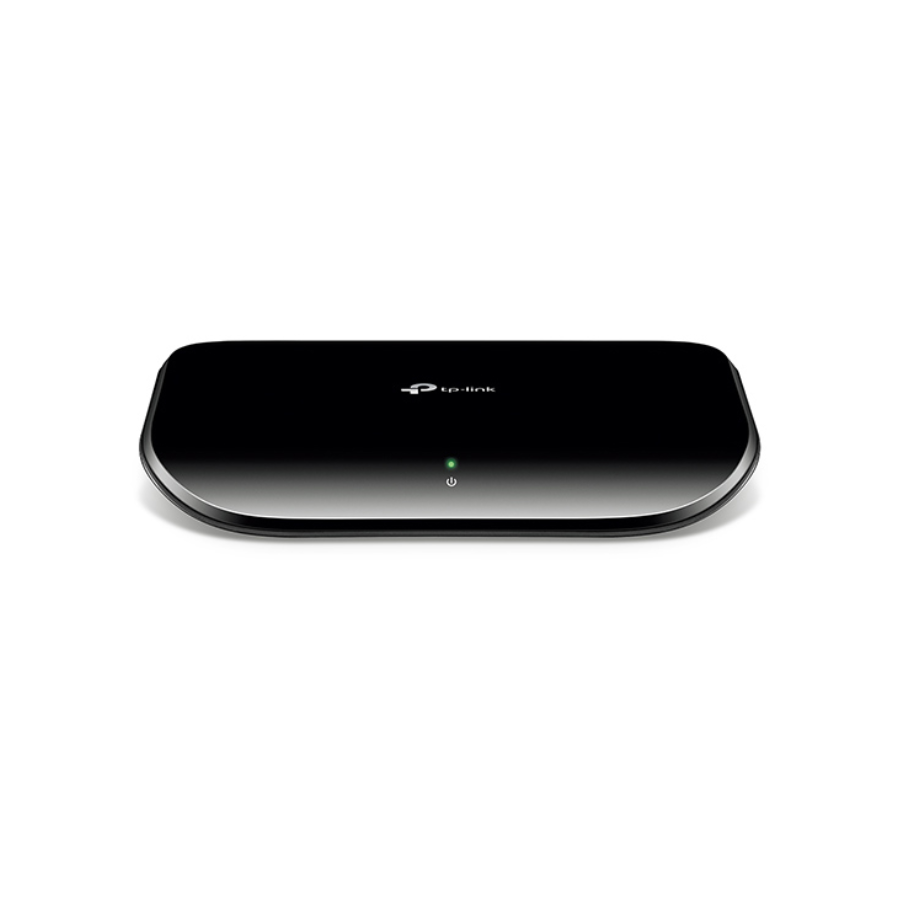

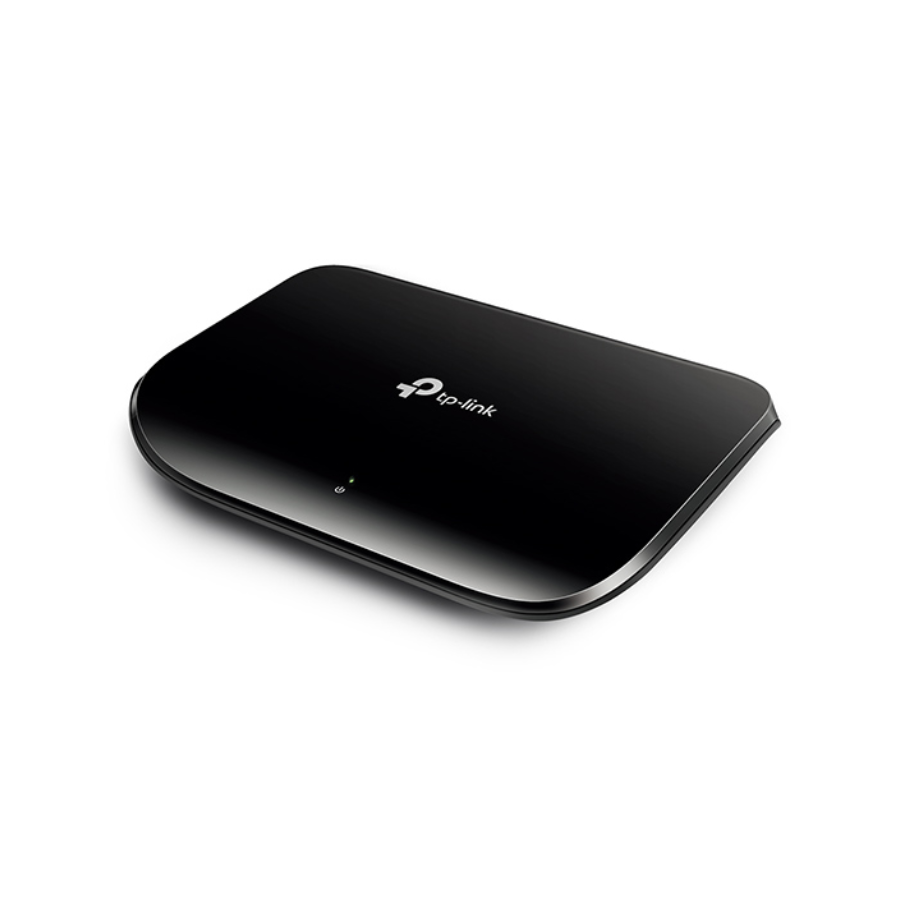

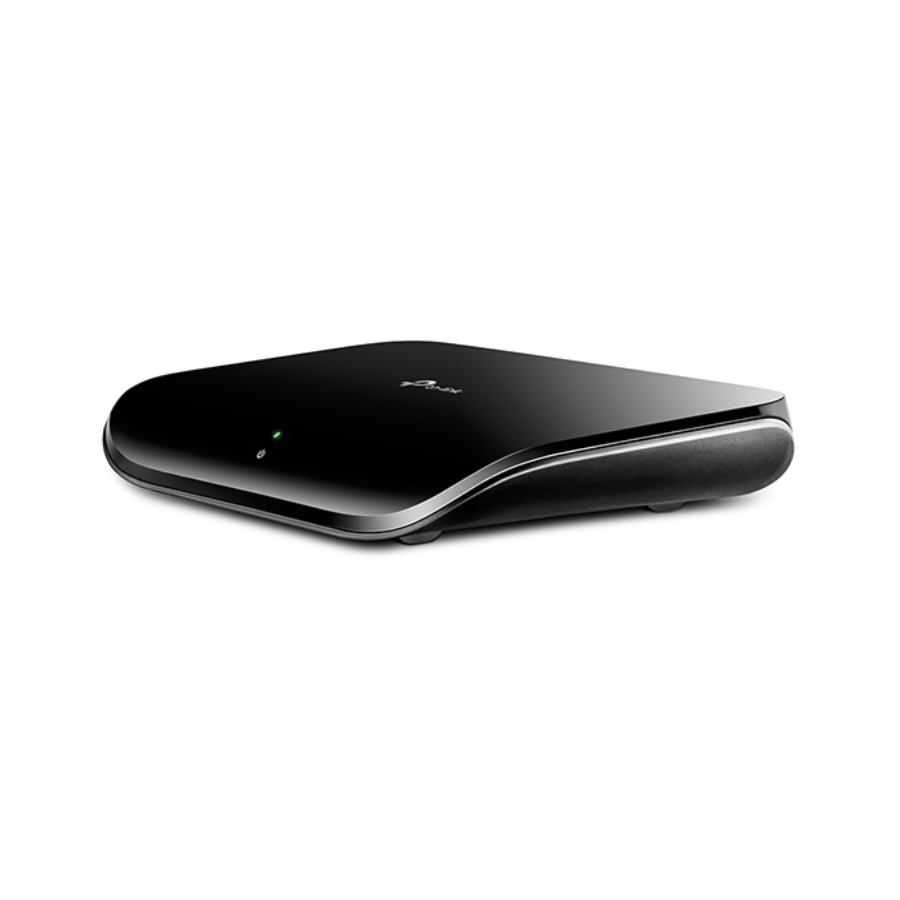

TP LINK TL-SG1005D 5 PORT 100/1000M SWITCH
- AVAILABILITY:
- SKU: 8151
- CATEGORY: SWITCHES
The TP-Link TL‑SG1005D 5‑Port 100/1000Mbps Gigabit Switch is a compact and reliable networking device that expands wired connections with high‑speed performance. Featuring five gigabit RJ45 ports with auto‑negotiation and MDI/MDIX support, it delivers smooth data transfer for PCs, gaming consoles, NAS devices, and more. With plug‑and‑play setup, energy‑efficient design, and a silent fanless build, it’s ideal for home and small office networks requiring fast and stable connectivity.
2 YEAR WARRANTY
🔌 5‑Port Gigabit Ethernet Switch: Provides 5× 10/100/1000Mbps RJ45 ports for high‑speed wired networking
🚀 True Gigabit Speed: Delivers up to 10× faster performance than 100Mbps switches for large file transfers and smooth streaming
⚡ Auto‑Negotiation & Auto MDI/MDIX: Automatically detects network speed and eliminates the need for crossover cables
🖥️ Non‑Blocking Wire‑Speed Transmission: Ensures maximum data throughput without delays
🌱 Energy‑Efficient Technology: Reduces power usage based on link status and cable length — eco‑friendly operation
📡 Plug & Play Setup: No configuration—just plug in and start networking instantly
🔇 Fanless Silent Design: Quiet operation ideal for quiet offices, homes, and media rooms
📦 Compact and Durable: Small form factor with sturdy casing for desktop or shelf placement
⚙️ Wide Compatibility: Works seamlessly with PCs, laptops, smart TVs, gaming consoles, printers, and more
🏠 Versatile Networking: Perfect for home, office, small businesses, and CCTV systems
🎯 Reliable Gigabit Performance: Ideal for HD streaming, online gaming, VoIP, and fast data access
| Brand | TP‑LINK |
| Model | TL‑SG1005D |
| Product Type | Unmanaged Desktop Ethernet Switch |
| Ports | 5 × Gigabit RJ45 Ports (Auto‑MDI/MDIX) |
| Network Speed | 10/100/1000 Mbps per port |
| Standards & Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Switching Method | Store‑and‑Forward |
| Forwarding Rate | 10 Gbps (Max Switching Capacity) |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | Up to 9 KB |
| LED Indicators | Power, Link/Act per port |
| Auto Features | Auto‑negotiation, Auto‑MDI/MDIX |
| Flow Control | IEEE 802.3x Flow Control |
| Power Consumption | < 2.5 W (typical) |
| Power Supply | External Power Adapter (5 V DC) |
| Design | Desktop, fanless (silent) |
| Dimensions | 98 × 70 × 25 mm |
| Weight | ~0.12 kg |
| Installation | Plug & Play (no configuration) |
| Operating Temperature | 0 °C – 40 °C |
| Storage Temperature | ‑40 °C – 70 °C |
| Humidity (Operating) | 10% – 90% non‑condensing |
| Certifications | CE, FCC, RoHS |
| Usage | Home, Small Office, CCTV, Network Expansion |
