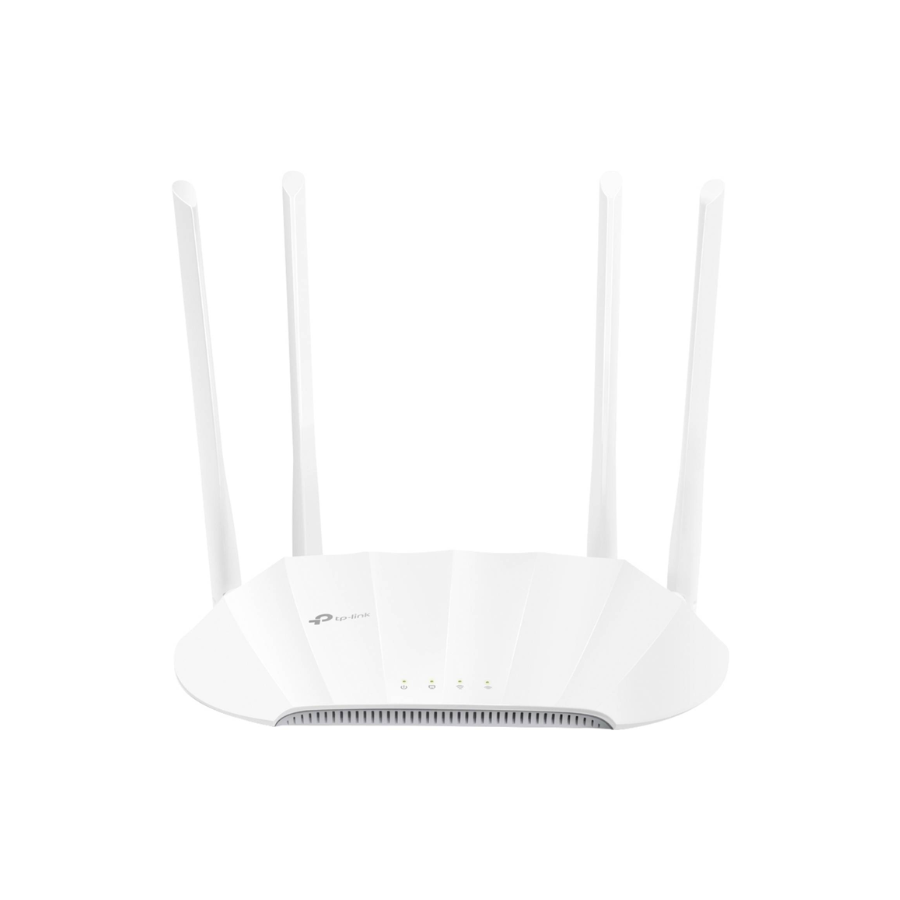

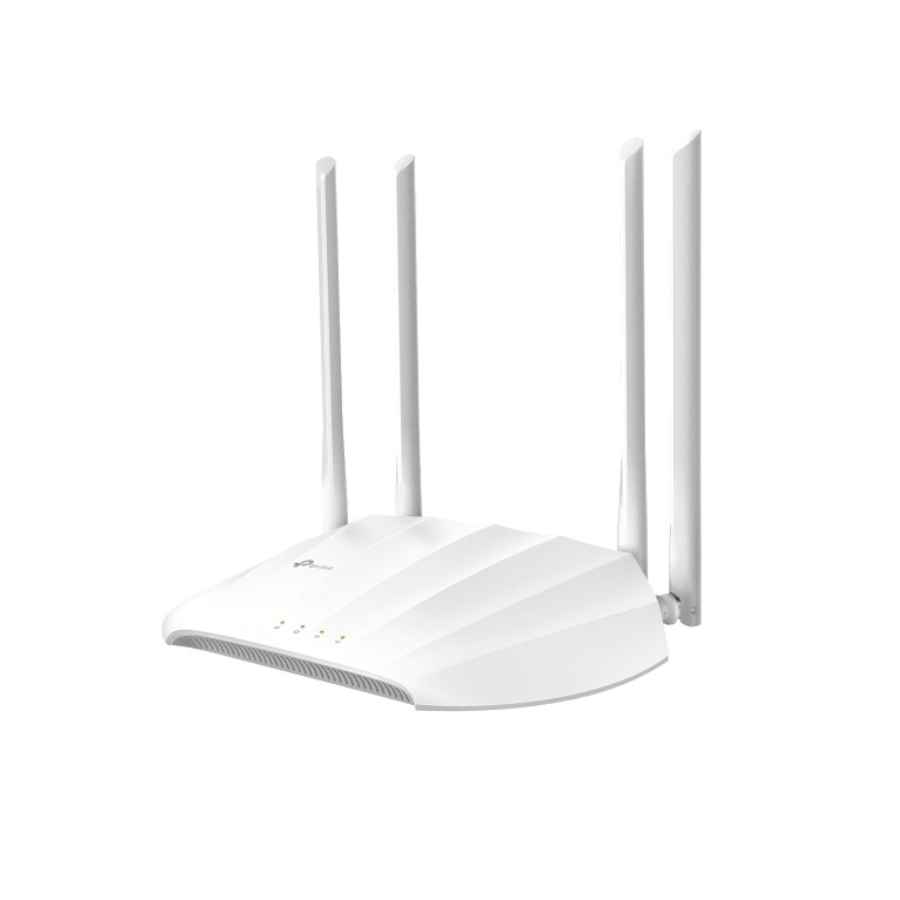

TP-LINK TL-WA1201 AC1200 WIRELRSS ACCESS POINT
- AVAILABILITY:
- SKU: 2100
- CATEGORY: NETWORK ACCESSORIES
The TP-LINK TL-WA1201 AC1200 Wireless Access Point is a dual-band Wi-Fi 5 (802.11ac) access point that extends or creates a wireless network with speeds of up to 1200 Mbps across the 2.4 GHz and 5 GHz bands. It supports multiple operation modes (Access Point, Range Extender, Client, Multi-SSID), MU-MIMO and Beamforming for better coverage and performance, and Passive PoE for flexible installation — making it suitable for homes, offices, and small businesses needing reliable wireless connectivity with robust features.
2 YEAR WARRANTY
📡 Wireless Standard: Dual-band AC1200 — provides combined speeds up to 1200 Mbps (300 Mbps @ 2.4 GHz + 867 Mbps @ 5 GHz).
🌐 Access Point Mode: Adds or extends Wi-Fi coverage by broadcasting wireless network from an existing wired connection.
🔄 Dual-Band Connectivity: 2.4 GHz for broader coverage and legacy device support, 5 GHz for faster speeds and less interference
⚡ High-Speed Performance: Supports fast wireless connections for streaming, gaming, video calls, and everyday internet use.
🧠 Multiple Operation Modes: Includes Access Point, Client, Range Extender, and Multi-SSID (depending on firmware).
🔌 Ethernet Port: 1× Gigabit (10/100/1000 Mbps) LAN port for stable wired backhaul or device connection.
📶 Power over Ethernet (PoE) Support: Can receive power via Ethernet (optional) for flexible placement (model/region dependent).
🔐 Security: Supports WPA/WPA2 encryption and multiple SSIDs for secure access control.
📊 Guest Network Support: Create a separate SSID for visitors without exposing the main network.
🛠️ Easy Setup: Simple web UI and Tether/mobile app compatible (where supported) for quick installation and management.
🏠 Use Cases: Extend Wi-Fi coverage in homes, offices, shops, and schools, Extend Wi-Fi coverage in homes, offices, shops, and schools, Add Wi-Fi to existing wired networks
🔧 Optimized Antenna: Built-in or external antennas deliver better coverage and signal reliability.
📏 Compact Design: Sleek, wall/ceiling-mountable form factor for flexible installation.
🔁 Compatible with Standards: Backward compatible with 802.11a/b/g/n/ac wireless devices.
| Model | TP‑LINK TL‑WA1201 AC1200 Wireless Access Point |
| Wireless Standard | IEEE 802.11ac/n/a (5 GHz), IEEE 802.11b/g/n (2.4 GHz) |
| Wi‑Fi Band | Dual‑Band: 2.4 GHz & 5 GHz |
| Max Wireless Speed | 2.4 GHz: up to 300 Mbps 5 GHz: up to 867 Mbps (total ~1200 Mbps) |
| Antenna | 4 × Fixed High‑Performance Antennas |
| MU‑MIMO | Supported (for serving multiple devices efficiently) |
| Beamforming | Yes (improves focused signal) |

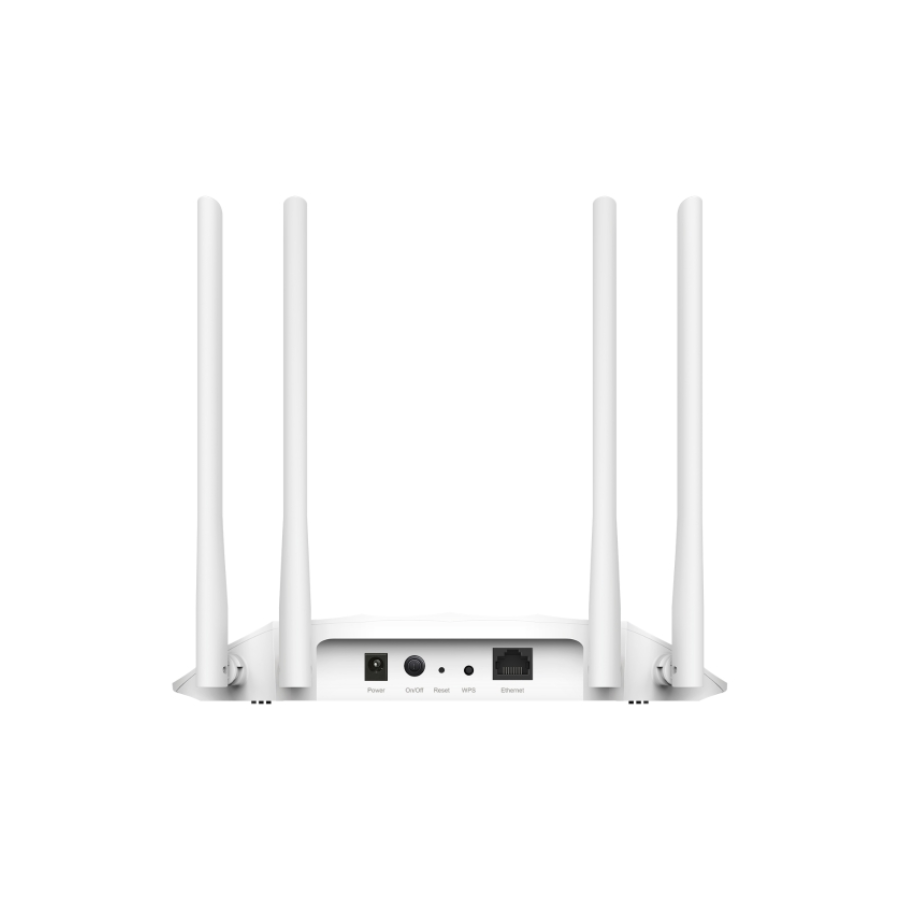

| Ethernet Port | 1 × Gigabit RJ45 (10/100/1000 Mbps) with Passive PoE support |
| Power Supply | 12 V ⎓ 1.5 A (PoE supported) |
| Wireless Modes | Access Point, Range Extender, Client, Multi‑SSID |
| Multi‑SSID | Supports up to multiple SSIDs (segmented networks) |
| Security | WPA3, WPA/WPA2, WPA‑PSK/WPA2‑PSK encryptions (varies by region) |
| Guest/Captive Portal | Yes (optional guest access with captive portal) |
| WPS Button | Yes (for easy device pairing) |
| Dimensions | 225 × 145.5 × 37 mm (8.9 × 5.7 × 1.5 in) |
| Operating Temp. | 0 °C to 40 °C |
| Storage Temp. | −40 °C to 70 °C |
| Operating Humidity | 10%–90% non‑condensing |
| Certifications | CE, FCC, RoHS |
| Protocols | IPv4, IPv6 |
