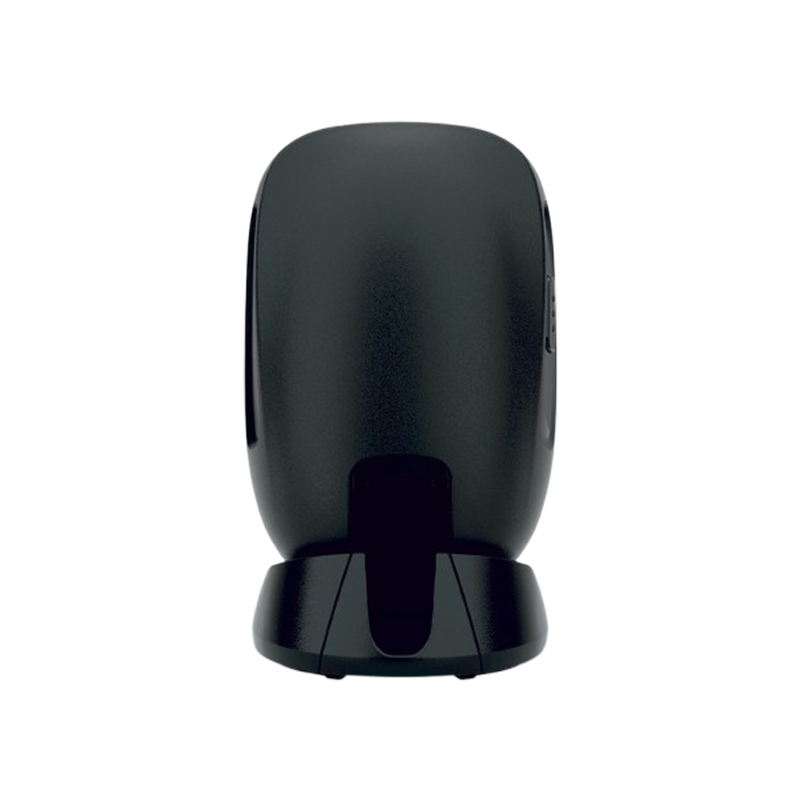

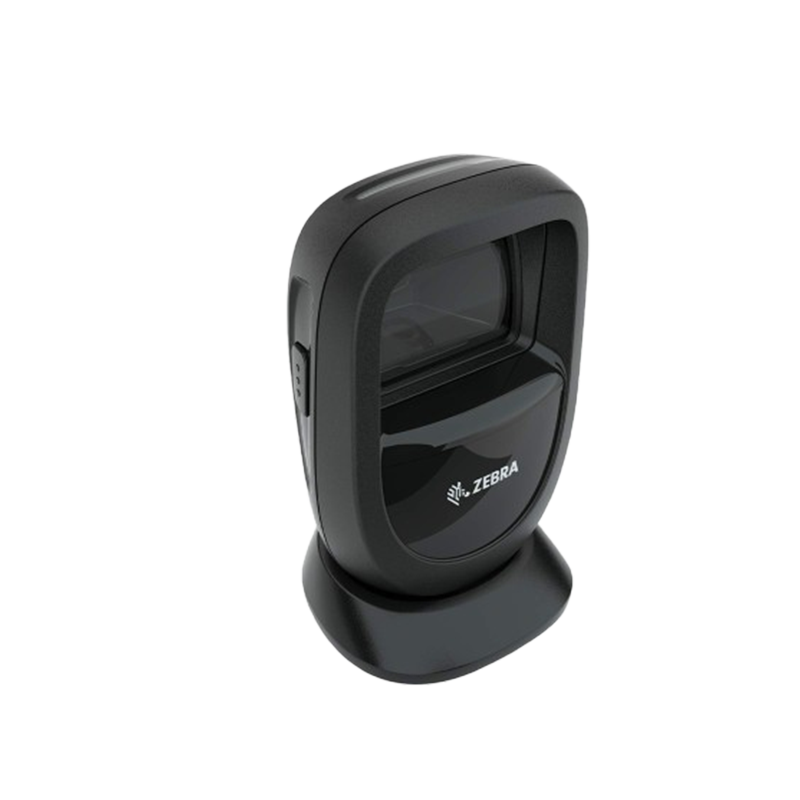

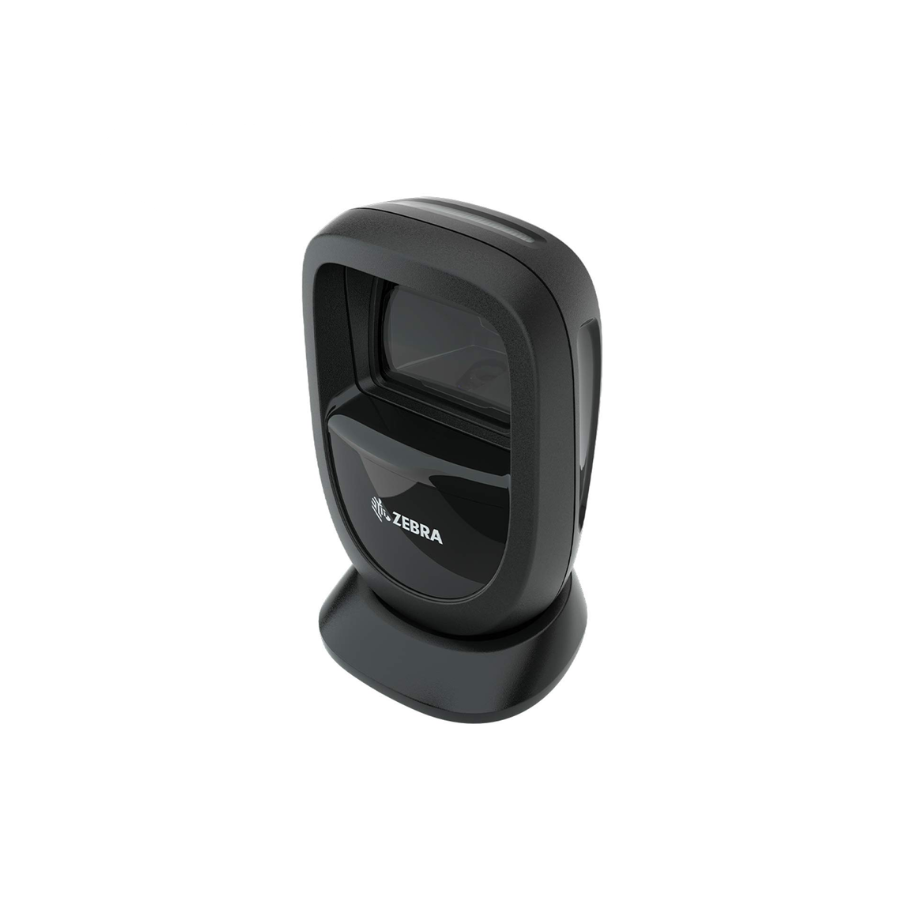

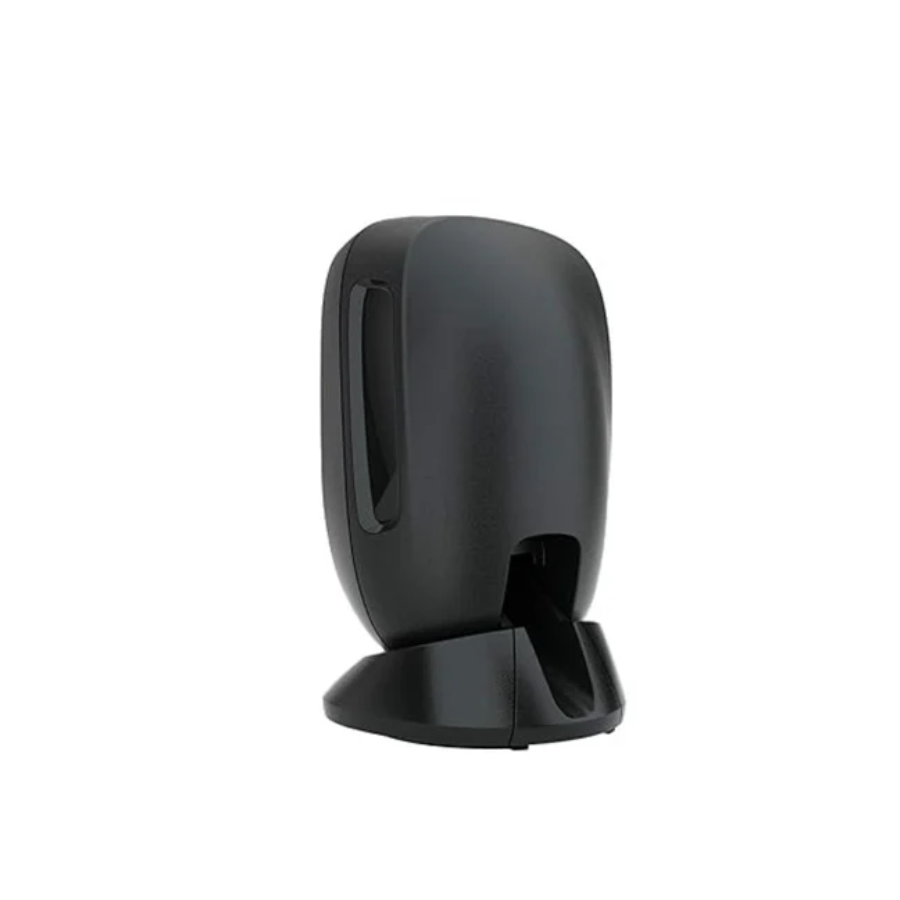

ZEBRA SR4U2100AZY DS9308 SCANNER

ZEBRA SR4U2100AZY DS9308 SCANNER

ZEBRA SR4U2100AZY DS9308 SCANNER

ZEBRA SR4U2100AZY DS9308 SCANNER

ZEBRA SR4U2100AZY DS9308 SCANNER

ZEBRA SR4U2100AZY DS9308 SCANNER

ZEBRA SR4U2100AZY DS9308 SCANNER

AVAILABILITY: In Stock

SKU: 5032
CATEGORY: POS ITEM,BARCODE SCANNER

Rs. 40,000.00Rs. 37,500.00

2D barcode scanning
Long scanning distance
Wide scanning angle
Durable design

6 MONTH WARRANTY

Add to Cart Buy Now

Description
Specification

Scanning Technology: CMOS image sensor Decoding
Capability: 1D, 2D, PDF417, Data Matrix, QR Code, etc.
Scanning Distance: Up to 450mm (13mil UPC-A)
Scanning Angle: Pitch: 0-360°, Roll: ±60°, Yaw: ±60°
Interface: USB
Power Source: Rechargeable battery
Dimensions: 5.71 x 3.39 x 3.31 inches
Weight: 11.2 ounces

Model / Series	DS9308 — Desktop / Presentation Barcode Scanner (SR4U2100AZY)
Scanner Type	1D / 2D Imaging Scanner
Decode Capability	Reads 1D & 2D barcodes (e.g. Code 39, Code 128, UPC/EAN, GS1 DataBar, PDF417, Micro‑PDF417, DataMatrix, QR Code, Aztec, MaxiCode, postal codes, etc.)
Sensor / Imager	1280 × 800‑pixel megapixel sensor + PRZM Intelligent Imaging (Zebra)
Field of View (FOV)	Horizontal ~52°, Vertical ~33°
Scan Speed / Performance	High scan speed: up to ~3050 mm/s decode rate
Minimum Print Contrast	15% reflective difference required
Scan Tolerance / Angle	Pitch: ±60°, Roll: 360°, Skew: ±60°
Maximum Scanning Distance	27.9 cm (standard‑range) from scanner window
Connectivity / Interface Options	USB, RS-232, Keyboard‑Wedge, RS‑485 (TGCS / IBM 46XX) depending on variant
Form Factor / Mounting	Desktop / presentation style (hands‑free scanning) — suitable for POS counters, retail checkouts, etc.
Dimensions	14.5 cm (H) × 8.6 cm (W) × 8.3 cm (D) — 5.7″ × 3.4″ × 3.3″
Weight	318 g
Durability	Withstands repeated drops from 1.5 m (5 ft) to concrete; sealed against dust and spills (IP52 rating)
