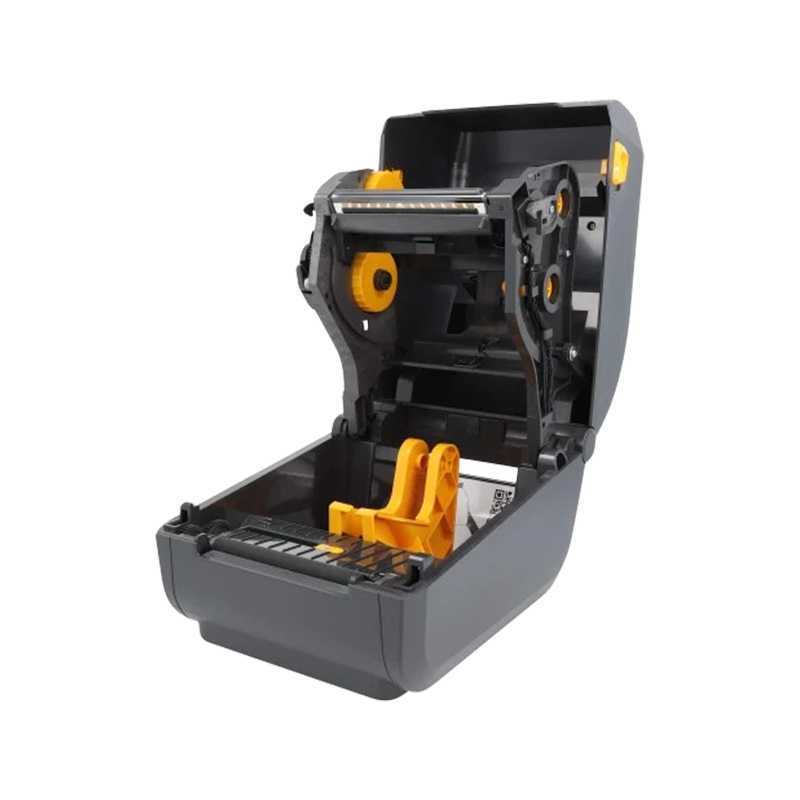

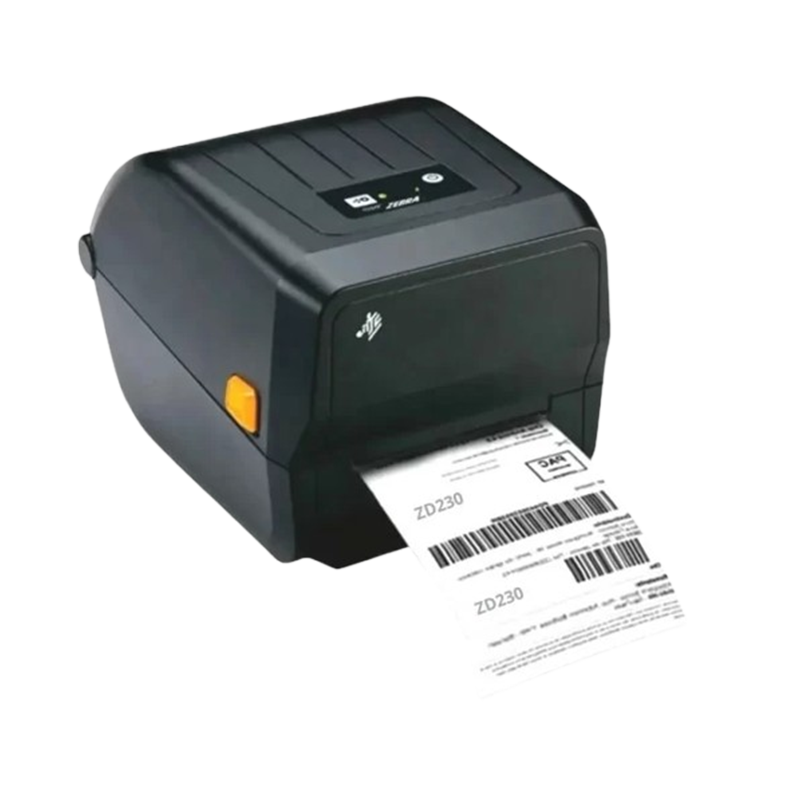

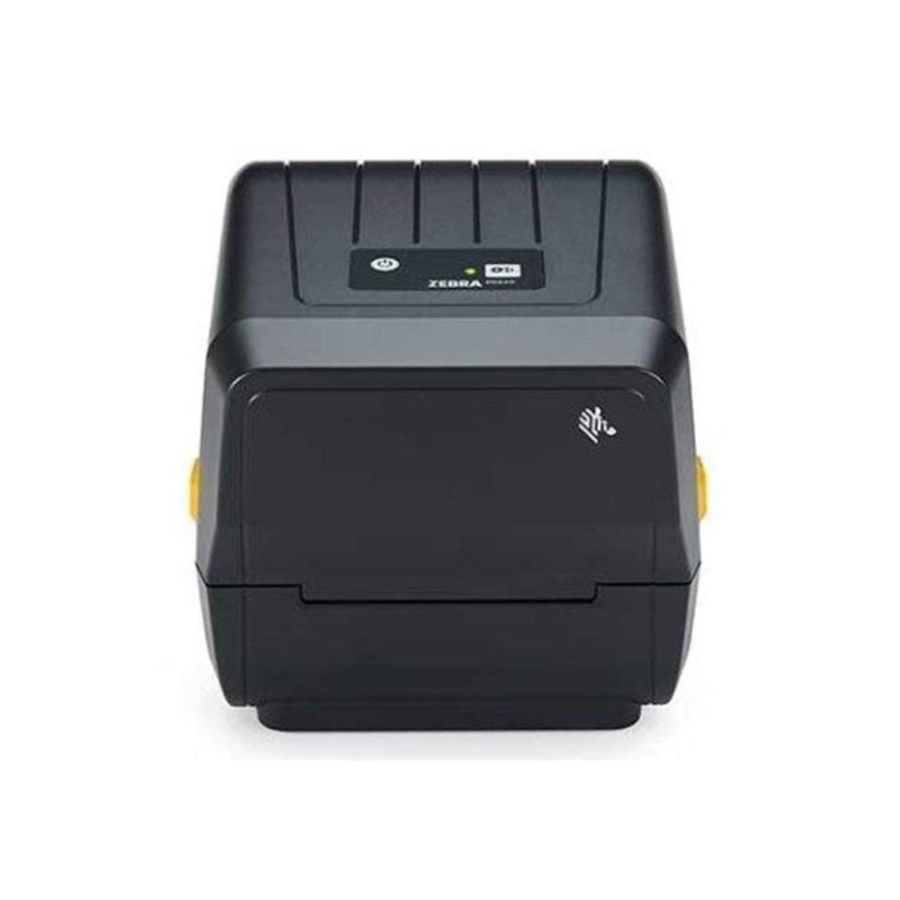

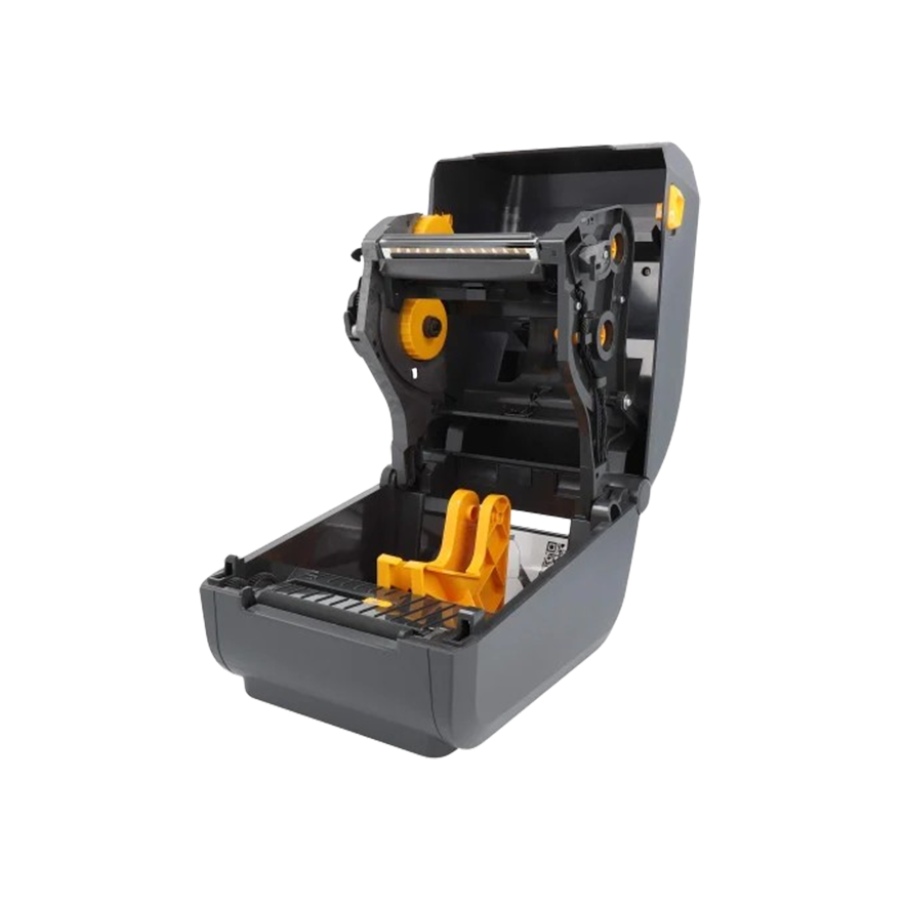

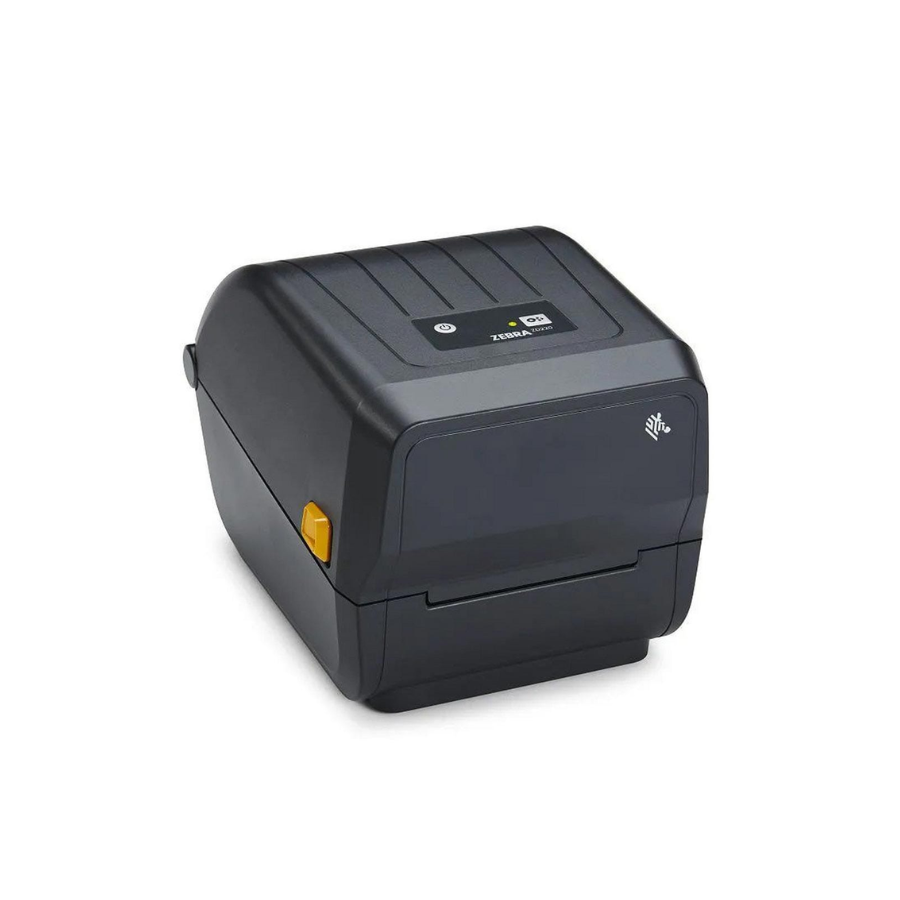

ZEBRA ZD23042-30GG00EZ BARCODE LABLE PRINTER
- AVAILABILITY:
- SKU: 4306
- CATEGORY: PRINTERS,STICKER LABLE PRINTERS
The Zebra ZD23042-30GG00EZ Barcode Label Printer is a reliable and easy-to-use desktop label printer designed for retail, logistics, warehouses, healthcare, and office environments. Featuring direct thermal printing technology, it delivers clear, high-quality barcode labels, tags, receipts, and shipping labels with consistent performance. Its compact design, durable construction, and simple setup make it ideal for daily labeling tasks, while USB connectivity ensures seamless integration with existing systems. Built for efficiency and dependability, the ZD230 offers cost-effective label printing for businesses of all sizes.
1 YEAR WARRANTY
🖨️ Reliable Label Printing: Designed for fast, consistent barcode label output
⚡ Efficient Performance: Quick printing speeds for busy environments
🔖 Thermal Printing Technology: No ink or toner — low running cost
📏 Standard Label Sizes: Supports a wide range of common label widths
🔌 USB Connectivity: Easy plug-and-play setup with computers and POS systems
🛠️ Simple Media Loading: Easy-to-load design reduces downtime
💡 LED Status Indicators: Shows power, media, and error statuses clearly
🧰 Durable Build: Built for everyday use in retail, office & industrial settings
📊 Compatible Software: Works with common label design and printing apps
🔄 Reliable Output: Consistent barcodes for scanners to read every time
| Model | Zebra ZD230 |
| Printer Type | Barcode Label Printer (Desktop) |
| Print Technology | Thermal Transfer and Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) |
| Maximum Print Width | ~4.09 in (104 mm) |
| Print Speed | Up to ~6 in/sec (152 mm/sec) |
| Supported Media Width | ~1.00 – 4.4 in (25.4 – 112 mm) |
| Maximum Label Length | ~39 in (991 mm) |
| Maximum Roll Diameter | ~5 in (127 mm) |
| Core Diameter Supported | 0.5 in (12.7 mm) / 1.0 in (25.4 mm) standard (optional 1.5 in) |
| Media Types | Roll-fed or fan-fold labels, die cut, continuous, tag stock, wristbands (with/without black mark) |
| Ribbon Support (Thermal Transfer) | Ribbon width ~1.33 – 4.3 in (33.8 – 109.2 mm); up to 300 m length |
| Memory | Flash ~128 MB; SDRAM ~128 MB (some versions use 256 MB Flash) |
| Printer Languages | ZPL, ZPL II, EPL2, XML (varies by model) |
| Barcode Symbologies | 1D & 2D: Code 39, Code 128, EAN-13/8, UPC-A/E, QR Code, PDF417, DataMatrix, MaxiCode, Aztec, and many more |
| Connectivity | USB 2.0 (standard) |
| Optional Connectivity | Some ZD230 variants support Ethernet, Wi-Fi or Bluetooth (factory options) |
| Indicators & Controls | Single LED status indicator; Feed/Pause button |
| Dimensions (Thermal Transfer) | ~10.5 × 7.75 × 7.5 in (267 × 197 × 191 mm) |
| Dimensions (Direct Thermal) | ~8.6 × 6.9 × 5.9 in (220 × 176 × 151 mm) |
| Weight | ~1.1 kg (2.5 lbs) |
| Power | Auto-detectable 100-240 V AC, 50-60 Hz (ENERGY STAR qualified) |
| Operating Temp / Humidity | ~4.4 °C – 41 °C; 10 % – 90 % non-condensing |
| Storage Temp / Humidity | ~-40 °C – 60 °C; 5 % – 95 % non-condensing |
| Software & Tools | Link-OS Basic OS; ZebraDesigner Essentials label design tool |
