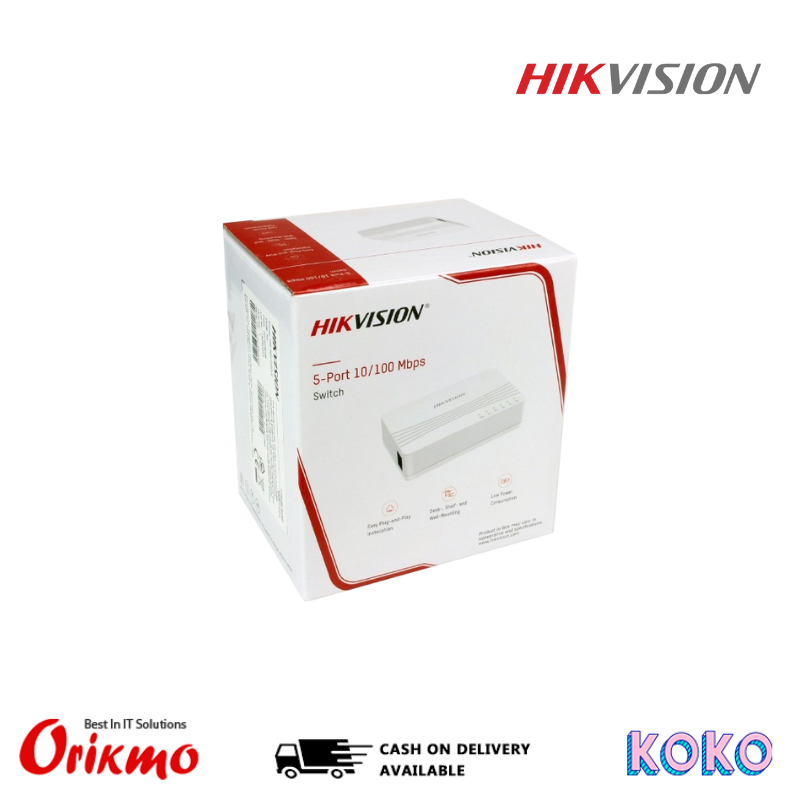

HIKVISION DS-3E0505D-O 5 PORT SWITCH
- AVAILABILITY:
- SKU: 8188
- CATEGORY: SWITCHES
HIKVISION DS-3E0505D-O 5-Port Unmanaged Switch
The HIKVISION DS-3E0505D-O is a compact, 5-port unmanaged switch designed for small-scale surveillance or networking needs. It offers stable, high-speed data transmission and is built to operate reliably in harsh environments.
Key Features:
-
5 × 10/100 Mbps RJ45 ports
-
Supports IEEE 802.3, 802.3u, and 802.3x standards
-
Auto MDI/MDIX and auto-negotiation supported
-
Fanless design for silent operation
-
Industrial-grade components for better durability
-
Plug and play – no configuration needed
-
Compact and durable metal housing
-
Operating temperature: -30°C to +70°C
Ideal for use in small offices, home networks, or surveillance systems.
2 YEARS WARRANTY
HIKVISION DS-3E0505D-O 5-Port Unmanaged Switch
The HIKVISION DS-3E0505D-O is a compact, 5-port unmanaged switch designed for small-scale surveillance or networking needs. It offers stable, high-speed data transmission and is built to operate reliably in harsh environments.
Key Features:
-
5 × 10/100 Mbps RJ45 ports
-
Supports IEEE 802.3, 802.3u, and 802.3x standards
-
Auto MDI/MDIX and auto-negotiation supported
-
Fanless design for silent operation
-
Industrial-grade components for better durability
-
Plug and play – no configuration needed
-
Compact and durable metal housing
-
Operating temperature: -30°C to +70°C
Ideal for use in small offices, home networks, or surveillance systems.
| HIKVISION DS-3E0505D-O 5-Port Switch Specifications | |
|---|---|
| Model | DS-3E0505D-O |
| Ports | 5 × 10/100 Mbps RJ45 ports |
| Switching Capacity | 1 Gbps |
| Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 1K |
| Standard Compliance | IEEE 802.3, 802.3u, 802.3x |
| Transmission Method | Store-and-forward |
| Power Supply | DC 5V/1A |
| Power Consumption | <2W |
| Dimensions | 100 mm × 65 mm × 26 mm |
| Weight | ~120g |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Housing | Metal, fanless design |
| Mounting | Desktop |
| Installation | Plug and Play (no configuration required) |
