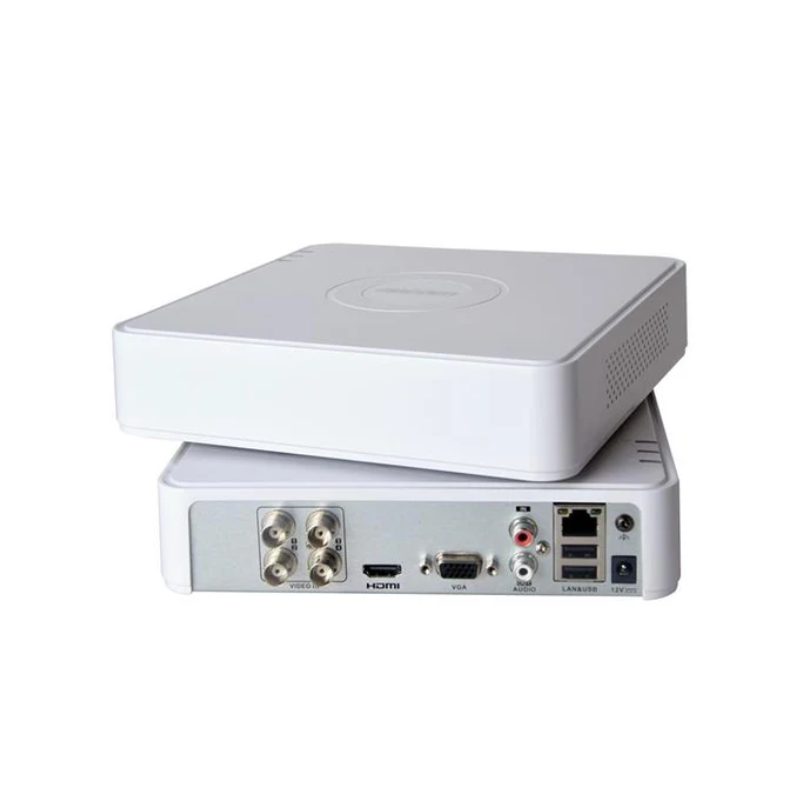

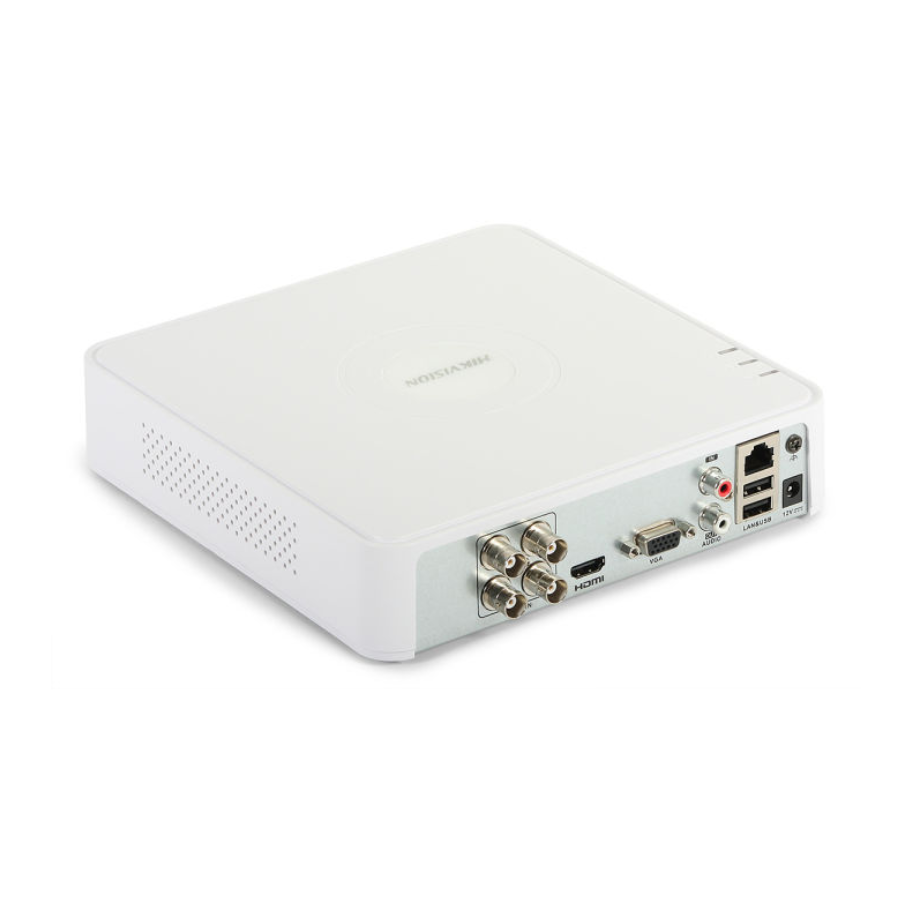

HIKVISION DS-7104HGHI-M1/T 4 CHANNEL DVR
- AVAILABILITY:
- SKU: 3900
- CATEGORY: CCTV ACCESSORIES,DVR
The HIKVISION DS-7104HGHI-M1/T 4 Channel DVR is a reliable and compact digital video recorder designed for efficient CCTV surveillance management. Supporting up to 4 camera channels, it provides high-quality recording, playback, and monitoring for homes, offices, and small business security systems. Featuring advanced H.265+ video compression technology, it helps reduce storage usage while maintaining excellent video quality. With support for HDTVI/AHD/CVI/CVBS/IP cameras, remote viewing via mobile and PC, and easy installation, the DS-7104HGHI-M1/T is an ideal solution for secure and cost-effective surveillance systems.
2 YEARS WARRANTY
📹 4 Channel Turbo HD DVR – Supports up to 4 analog HD cameras for reliable surveillance monitoring
🎥 High-Definition Recording – Provides clear and detailed video recording for security applications
🔄 Supports Multiple Camera Formats – Compatible with TVI, AHD, CVI, CVBS, and IP cameras for flexible installation
🌐 H.265+ Video Compression – Reduces storage space and bandwidth usage while maintaining excellent video quality
💾 SATA HDD Support – Allows installation of a hard drive for continuous recording and video storage
📺 HDMI & VGA Output – Easily connects to monitors, TVs, and display systems for live viewing and playback
🔍 Smart Playback Function – Helps quickly search and review recorded surveillance footage
📱 Remote Monitoring Support – Enables live viewing and playback through smartphones and computers
🔐 Advanced Security Features – Supports motion detection, recording schedules, and user management
🌐 Network Connectivity – Allows remote access and integration with network-based surveillance systems
🎥 High-Quality Night Monitoring – Supports connected cameras with infrared night vision capability
🏠 Suitable for Home & Business Security – Ideal for shops, offices, homes, warehouses, and small commercial installations
🧱 Compact & Reliable Design – Designed for stable 24/7 surveillance operation
🛡️ Trusted Hikvision Quality – Professional security solution from Hikvision
| Brand | Hikvision |
| Model | DS-7104HGHI-M1/T |
| Product Type | Turbo HD DVR (Digital Video Recorder) |
| Series | Hikvision Value Series |
| Channel Capacity | 4 Channel Analog Camera Input |
| Analog Video Input | 4 × BNC Channels |
| Supported Camera Formats | HDTVI / AHD / HDCVI / CVBS |
| IP Camera Support | Up to 5 IP Channels (Including Analog Channel Conversion) |
| Maximum IP Camera Resolution | Up to 2MP |
| Analog Recording Resolution | Up to 1080p Lite |
| Video Compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Video Input Interface | BNC (1.0 Vp-p, 75Ω) |
| Video Output | HDMI + VGA |
| HDMI Output Resolution | Up to 1920 × 1080 |
| VGA Output Resolution | Up to 1920 × 1080 |
| Audio Input | 1 × RCA Audio Input |
| Audio Output | 1 × RCA Audio Output |
| Audio Support | Audio Over Coaxial Cable |
| Two-Way Audio | Supported (Using First Audio Input) |
| Synchronous Playback | 4 Channels |
| Recording Bit Rate | 32 Kbps – 4 Mbps |
| Network Bandwidth | Up to 64 Mbps |
| Network Interface | 1 × RJ45 10/100 Mbps Ethernet |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SMTP, HTTPS, SADP, UPnP |
| Remote Access | Hik-Connect Mobile App & PC Software |
| Remote Users | Up to 32 Users |
| Hard Disk Support | 1 × SATA HDD |
| Maximum HDD Capacity | Up to 4TB |
| USB Ports | 2 × USB 2.0 |
| Smart Detection | Motion Detection 2.0 (Human & Vehicle Detection) |
| Smart Search | Supported |
| Power Supply | 12V DC, 1.5A |
| Power Consumption | ≤16W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 10% – 90% |
| Dimensions | Approx. 200 × 200 × 45 mm |
| Weight | Approx. ≤0.8kg (Without HDD) |
| Installation Type | Mini Desktop Chassis |
| Usage | Home CCTV, Small Offices, Shops, Security Systems |
Related Products

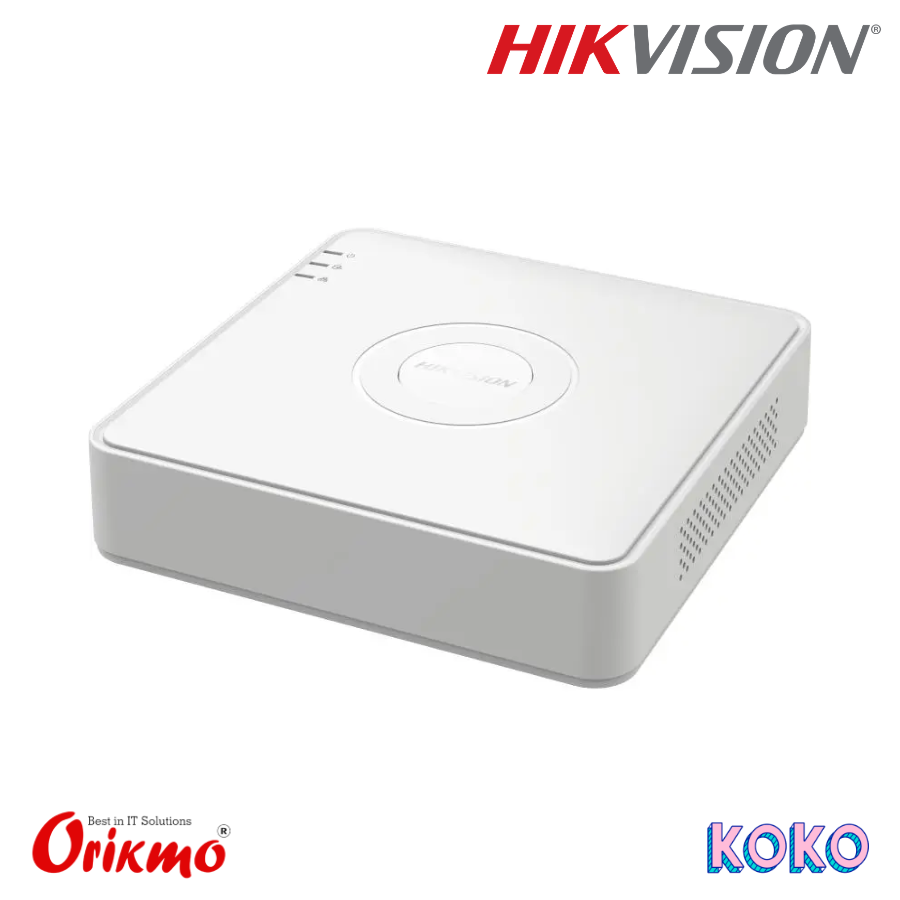

HIKVISION IDS-7104HQHI-M1/T 4CH 1080P MINI 1U H.265 ACUSENSE DVR
