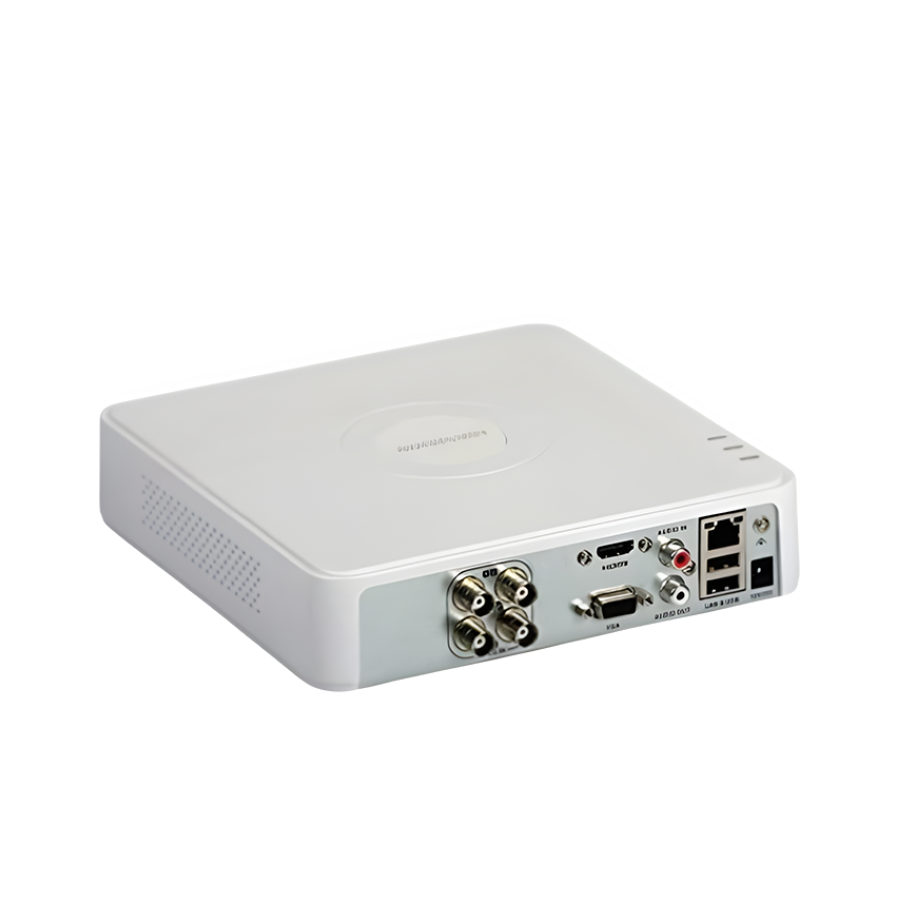

HIKVISION IDS-7104HQHI-M1/T 4CH 1080P MINI 1U H.265 ACUSENSE DVR
- AVAILABILITY:
- SKU: 3919
- CATEGORY: DVR
🎥 4-Channel DVR – Supports up to 4 analog HD cameras for reliable surveillance recording.
🧠 AcuSense Technology – Intelligent human and vehicle detection reduces false alarms caused by animals, rain, and moving objects.
📹 Supports Multiple Video Formats – Compatible with HDTVI, AHD, CVI, CVBS, and IP cameras for flexible system integration.
🗜️ H.265 Pro+ Video Compression – Saves storage space while maintaining high-quality video recording.
🌟 Up to 1080p Recording – Delivers clear Full HD video for enhanced monitoring and playback.
🌐 IP Camera Support – Supports additional IP camera connections for expanded surveillance coverage.
💾 SATA Hard Drive Support – Supports a single SATA HDD for continuous video storage and playback.
🔍 Smart Playback & Video Search – Quickly locate important events using intelligent search functions.
📱 Remote Viewing via Hik-Connect – Monitor live video and playback recordings anytime using a smartphone, tablet, or PC.
🚨 Motion Detection & Event Recording – Supports motion-triggered recording, event notifications, and alarm functions.
🔌 HDMI & VGA Video Output – Connects easily to monitors and displays with high-definition video output.
🛡️ Reliable 24/7 Operation – Designed for continuous surveillance in homes, offices, shops, schools, and commercial environments.
⚙️ Compact Mini 1U Design – Space-saving design for easy installation and maintenance.
| Brand | Hikvision |
| Model | iDS-7104HQHI-M1/T |
| Product Type | 4-Channel AcuSense DVR |
| DVR Type | Mini 1U H.265 Hybrid DVR |
| Video Inputs | 4 × BNC (HDTVI / AHD / HDCVI / CVBS) |
| IP Camera Support | Up to 6 IP Cameras (by replacing analog channels) |
| Maximum IP Camera Resolution | Up to 6MP |
| Video Compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Recording Resolution | Up to 3K / 5MP Lite @ 12fps, 1080p @ 15fps |
| AI Features | AcuSense Human & Vehicle Detection, Motion Detection 2.0, Perimeter Protection |
| Face Detection | Supported |
| HDMI Output | 1 × HDMI (Up to 1920 × 1080 @ 60Hz) |
| VGA Output | 1 × VGA (Up to 1920 × 1080 @ 60Hz) |
| Simultaneous Video Output | HDMI & VGA |
| Audio Input | 1 × RCA (Supports Audio over Coax) |
| Audio Output | 1 × RCA |
| Two-Way Audio | Supported |
| Playback | Up to 4 Channels Simultaneous Playback |
| SATA Interface | 1 × SATA |
| Maximum HDD Capacity | Up to 10TB |
| Network Interface | 1 × RJ45 10/100Mbps Ethernet Port |
| Network Protocols | TCP/IP, DHCP, Hik-Connect, DDNS, DNS, NTP, SADP, HTTPS, UPnP, ONVIF |
| Remote Access | Hik-Connect Mobile App & Web Browser |
| USB Ports | 2 × USB 2.0 |
| Maximum Incoming Bandwidth | 72 Mbps |
| Remote Users | Up to 32 Users |
| Power Supply | DC 12V / 1.5A |
| Power Consumption | ≤ 8W (Without HDD) |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 200 × 200 × 48 mm |
| Weight | Approx. 1 kg (Without HDD) |
| Applications | Home, Office, Retail Shops, Warehouses, Schools, Commercial CCTV Systems |
