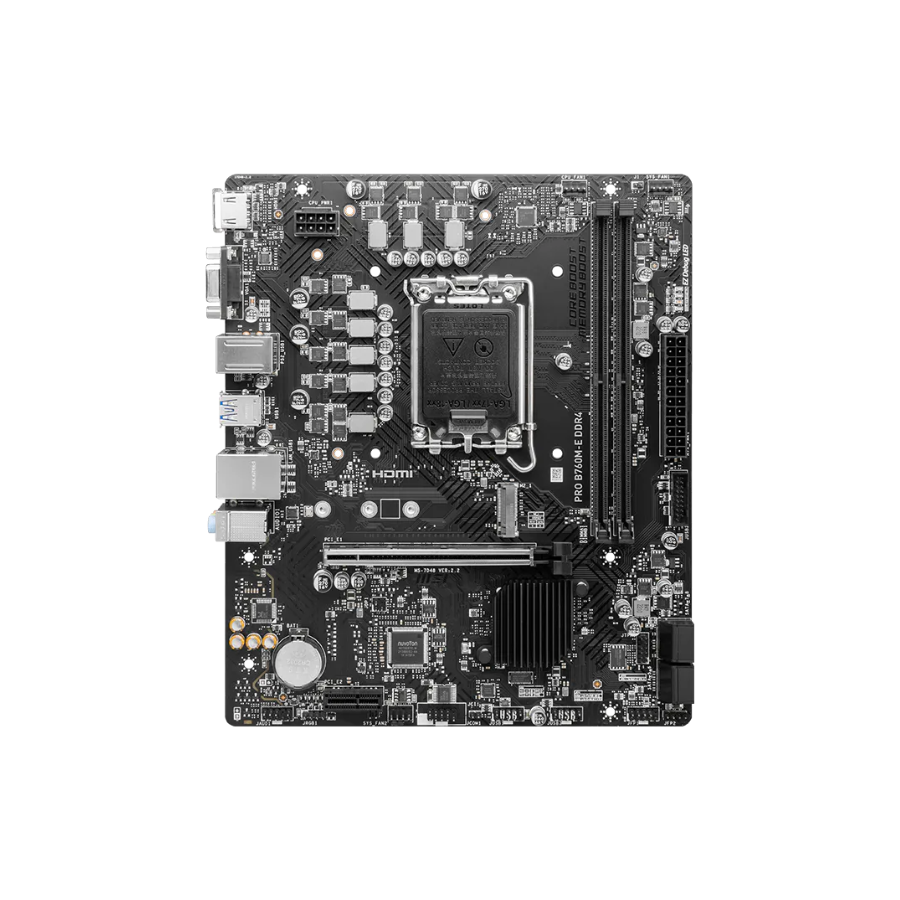

MSI PRO B760M E DDR4 MOTHERBOARD
- AVAILABILITY:
- SKU: 5601
- CATEGORY: MOTHERBOARDS
MSI PRO B760M-E DDR4 Motherboard is a reliable and feature-rich board designed for Intel processors, supporting DDR4 memory for smooth performance. With a compact micro-ATX form factor, robust power delivery, multiple connectivity options, and expansion slots, it’s ideal for building or upgrading a desktop PC for productivity, gaming, or everyday use. Easy to install and built for stability, it offers great value for modern systems.
3 YEAR WARRANTY
🧠 Intel B760 Chipset: Supports 12th & 13th Gen Intel Core processors (LGA1700)
🖥️ Micro-ATX Form Factor: Compact size perfect for mid & small builds
⚡ DDR4 Memory Support: High-speed DDR4 RAM for stable multitasking
🚀 PCIe 4.0 Slot: High-bandwidth support for modern graphics cards
💾 M.2 NVMe Slot: Ultra-fast SSD support for quick boot and load times
🔌 Multiple Connectivity Ports: USB 3.2, USB 2.0, HDMI & more
🌐 Gigabit LAN: Stable and reliable wired network connection
🛡️ Core Boost Technology: Enhanced power design for stable CPU performance
❄️ Effective Cooling Design: Heatsinks and fan headers for better thermal control
🔧 Easy Installation: User-friendly layout with clearly labeled connectors
| Model | MSI PRO B760M-E DDR4 |
| Chipset | Intel B760 Chipset |
| CPU Socket | Intel LGA 1700 (12th/13th/14th Gen Intel® Core™, Pentium® Gold & Celeron®) |
| Form Factor | Micro-ATX (236 × 200 mm) |
| Memory Type | DDR4 Dual-Channel |
| Memory Slots | 2 × DDR4 DIMM |
| Max Memory Capacity | Up to 64 GB |
| Memory Support/Speed | DDR4 2133–3200 MHz (JEDEC), DDR4 3333–4800+ MHz (OC), XMP supported |
| Expansion Slots | 1 × PCIe 4.0 ×16 1 × PCIe 3.0 ×1 |
| Storage | 1 × M.2 (PCIe 4.0 ×4 / SATA) 4 × SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 5, 10 for SATA devices |
| Onboard Graphics Output | 1 × HDMI™ 1.4 (4K@30 Hz), 1 × VGA (various resolutions) |
| USB Ports | Rear: 2 × USB 3.2 Gen1, 4 × USB 2.0; Internal Headers: 2 × USB 3.2 Gen1, 4 × USB 2.0 |
| LAN | Realtek® RTL8111H Gigabit Ethernet |
| Audio | Realtek® ALC897 7.1-Channel High-Definition Audio |
| Internal Headers | ATX Power, CPU Power, Fan headers, Front Panel Audio, USB, TPM 2.0, RGB LED header |
| Special Features | EZ Debug LEDs, Click BIOS 5, Resizable BAR support |
| Operating System Support | Windows® 10 & 11 (64-bit) |
| Warranty | Typically 3 Years (varies by seller) |
